Upper

UPPER

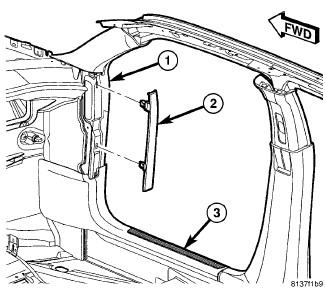

1. Position the upper cowl trim (2) to the cowl (1) at the front of the front door opening and the lower cowl trim (3).
2. Align the two spring clip retainers on the trim with the slots in the cowl.
3. Using hand pressure, press firmly and evenly downward on the trim over each of the spring clip locations until the retainers snap into place.
