Instrument Cluster Bezel - Installation

INSTALLATION

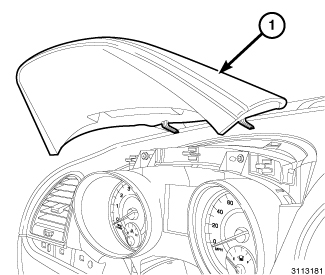

1. Align the instrument cluster bezel hood (1) to the instrument panel and hand tap to engage the snap retainers that secure the bezel hood.
