Console: Description and Operation

DESCRIPTION





An overhead console is standard on this vehicle and includes the following components:

- Overhead storage compartment (4)
- Front map/reading lamps switches (2)
- Power sunroof switch (7) - if equipped
- Universal transmitter (3) - if equipped
- Power rear liftgate (5) - if equipped

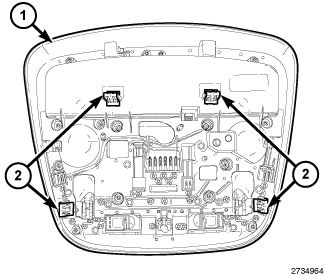

The overhead console assembly (1) is mounted by four snap clips (2) securing it to a molded plastic retainer bracket located above the headliner. The Electronic Overhead Module is secured to the overhead console with screws and is only serviced as an assembly with the overhead console.
