Rear Carpet - Installation
REAR

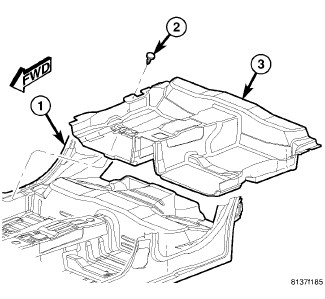

1. Position the rear carpet (3) into the vehicle through one of the rear door openings.
2. Pull the body wire harness take outs and connectors through the appropriate slits in the rear carpet.
3. Fit the rear carpet to the floor panel. Be certain to align the holes in the carpet with the corresponding holes in the floor panel. Be certain that the rear edge of the carpet is fitted over the rear seat kick-up area and over the rear seat cushion cups on the top of the kick-up area. Be certain that the front edge of the carpet is fitted over the front seat rear crossmember and butts up against the rear of the front seat front crossmember.
4. Install the push-pin fasteners (2) that secure the outboard edges of the rear carpet near the front of each rear door opening (1) sill.
5. Reinstall the scuff plate onto both rear door sills. Scuff Plate - Installation.
6. Reinstall the rear seat cushion into the vehicle. Seat Cushion Cover - Installation.
7. Reinstall the trim onto the inside of both lower B-pillars. B-Pillar Trim Panel - Installation.
8. Reinstall the center console onto the front floor panel transmission tunnel. Floor Console - Installation.
9. Reinstall the driver and passenger front seats into the vehicle. Front Seat - Installation.
