Front Carpet - Removal

FRONT






NOTE: The front carpet consists of two individual carpets, one for the driver side and one for the passenger side. These carpets can be removed from and installed into the vehicle individually.

1. Remove the driver and/or passenger front seat from the vehicle as appropriate. Front Seat - Removal.
2. Remove the center console from the front floor panel transmission tunnel. Floor Console - Removal.
3. Remove the trim from the driver or passenger side lower cowl side inner panel as appropriate. Cowl Trim Panel - Removal.
4. Remove the two push-pin fasteners (1) that secure the outboard edge of the front carpet (3) to the front door opening sill.
5. On the driver side only, remove the push-pin fastener (2) that secures the front carpet to the cowl side inner panel above the foot rest.

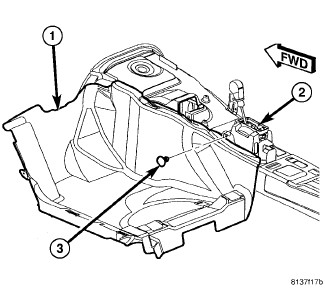

6. On the driver side only, remove the push-pin fastener (3) that secures the inboard edge of the front carpet (1) to the transmission shifter bracket (2).
7. Remove the front carpet from the floor panel.
