Rear

REMOVAL





1. Disconnect and isolate battery negative cable (2) from battery post.
2. Raise and support vehicle. Maintenance





3. On each side of vehicle rear, remove wheel mounting nuts (3), then tire and wheel assembly (1).





4. On each side of vehicle rear, while a helper applies brakes to keep hub from rotating, remove hub nut (1) from half shaft (2).





5. Remove rear exhaust system (2) (dual-outlet exhaust shown in figure).
6. Remove rear axle differential. Removal Removal
7. Slide each axle half shaft from hub and bearing and remove from vehicle.






NOTE: Due to short travel and low spring tension, it is not necessary to lock-out parking brake lever to service parking brake components.

8. Disconnect right rear parking brake cable (4) at connector (3) to front parking brake cable (5).
9. Disconnect left rear parking brake cable (1) at equalizer (2). Leave equalizer on front cable.





10. Remove screw (2) fastening front parking brake cable (1) routing bracket to rear crossmember front flange (3). Remove J-nut from crossmember.





11. If equipped with standard or premium disc brakes, on each rear disc brake:
a. While holding guide pins from turning, remove disc brake caliper guide pin bolts (2).
b. Remove brake caliper (1) from brake adapter (3) and pads.
c. Guide brake caliper up through suspension, following brake hose path. Support caliper above rear suspension using with bungee cord or wire to keep caliper from overextending brake hose when crossmember is lowered.






NOTE: To remove wheel speed sensor connector from body wiring harness connector, move retaining clip (2) and pull sensor connector outward.






12. Remove wheel speed sensor connectors (3 and 4) from body wiring harness connector (1) located in luggage compartment floor pan (2).





13. Unclip left wheel speed sensor cable (3) from routing clip (1) near body connector.





14. Unclip left sensor cable (1) from routing clips (2) along rear of crossmember near rear differential (3).





15. Unclip left sensor cable (2) from routing clip (1) above toe link mount on rear crossmember.





16. On each side of vehicle, remove shock absorber (1) lower mounting bolt (2) and nut (4).

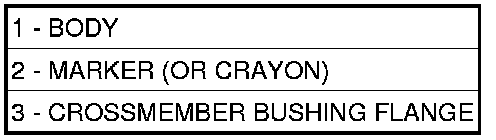

17. Carefully mark location of rear crossmember on body at all four mount (bushing) locations using a marker or crayon. Do not use a scratch awl to mark location.
18. Position an extra pair of jack stands under and support forward end of engine cradle to help stabilize vehicle during rear suspension removal/installation.





19. Position under-hoist utility jack or transmission jack (2) under center of rear crossmember (1). Raise jack head to contact crossmember and secure in place. When securing crossmember to jack, be sure not to secure stabilizer bar.






WARNING: Before opening fuel system, review all Warnings and Cautions.

20. Remove fuel filler tube. Removal





21. Remove both front (3) and both rear (2) mounting bolts fastening crossmember (1) in place.
22. Slowly lower crossmember using jack until crossmember is at a comfortable working level to access link and stabilizer bar fasteners.





23. On each end, remove bolt (3) and nut fastening stabilizer bar (4) to stabilizer link (2).
24. Remove bolts (1) fastening each stabilizer bar cushion retainer to crossmember.
25. Remove stabilizer bar (4) with cushions and retainers.





26. Remove coil springs and isolators (1, 2 and 5) from spring links.





27. For each parking brake cable, place 13 mm 12-point box wrench (4) over cable strand and completely onto cable retainer (3) as shown at crossmember bracket (1 - left) (2 - right). It may be necessary to wiggle wrench around somewhat to collapse retainer fingers. With wrench in place, pull cable from bracket.





28. On each side, remove screw fastening parking brake cable routing guide (1) to crossmember. Remove J-nuts from crossmember.






NOTE: For installation purposes, when removing fasteners for any rear suspension links, it is important to note which bolt fastens what component and in what direction it is installed in.

29. On each side of crossmember, remove bolt and nut (1) fastening spring link (4) to crossmember.





30. On each side of crossmember, while holding toe adjustment cam bolt from rotating, remove nut (3) securing toe link at crossmember (1).





31. On each side of crossmember, slide cam bolt (2) attaching toe link rearward, out of crossmember and link (1).





32. On each side of crossmember, remove bolt and nut (1) mounting link (3) at crossmember.





33. On each side of crossmember, remove nut and bolt (4) mounting tension link to crossmember (1).
34. On each side of crossmember, remove nut and bolt (2) mounting camber link to crossmember (1).
35. Carefully lift knuckle with links and parking brake cable attached from rear suspension crossmember.
36. Remove crossmember from jack.
