Rear Mount Shield - Removal

REMOVAL





1. Raise and support the vehicle.

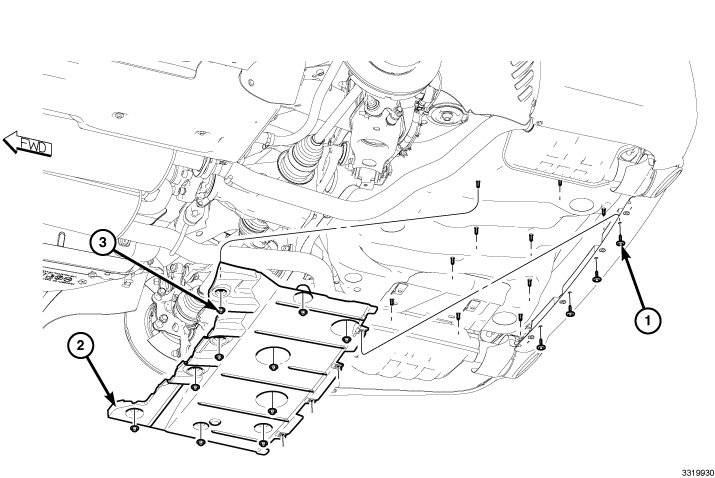

2. Remove the four retaining screws (1) that secure the rear underbody shield/panel (2) to the rear fascia.
3. Remove the ten retaining nuts (3) that secure the rear underbody shield/panel (2) to the tire tub area located forward of the rear fascia.
4. Remove the rear underbody shield/panel (2) from the vehicle.
