Latch Striker - Installation

INSTALLATION

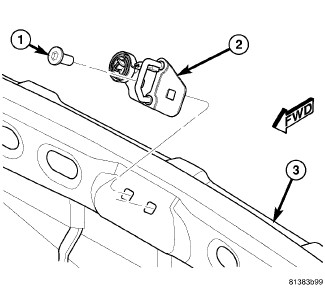

1. Position the deck lid latch striker (2) to the inside of the deck opening lower panel (3).
2. Install and tighten the two screws (1) that secure the latch striker to the deck opening lower panel. Tighten the screws to 28 Nm (21 ft. lbs.).
3. Adjust the latch striker position as necessary to achieve proper deck lid latch operation.
4. Reinstall the trunk rear trim panel to the deck opening lower panel Trunk Rear Trim Panel - Installation.
5. Close the deck lid.
