Rear Bumper - Installation

INSTALLATION

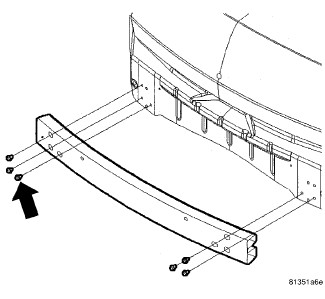

1. Position the bumper.
2. Install the nuts and washers and tighten to 28 Nm (21 ft. lbs.).
3. Install the fascia assembly. Rear Bumper Fascia - Installation
