Front Door

FRONT DOOR






NOTE: Hold the speaker while connecting the speaker electrical connector.

1. Connect the speaker electrical connector to the speaker.

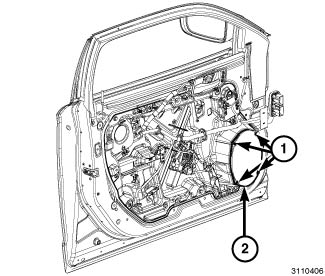

2. Position the speaker (2) into the door and install the retainers (1).

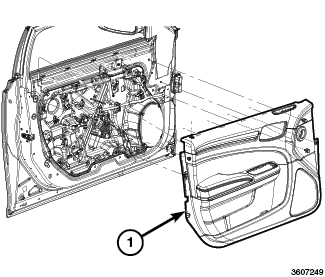

3. Install the door trim panel (1) Front Door Trim Panel - Installation.
4. Connect the IBS/negative battery cable assembly to the negative battery post.
