BEATS By Dr. Dre

BEATS(TM) BY DR. DRE(TM)

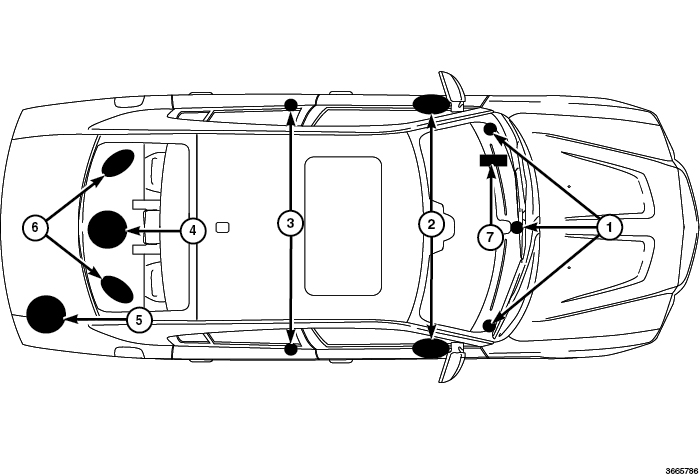

The BEATS(TM) BY DR. DRE(TM) audio system includes eleven speakers and a amplifier

- Three 8.89 centimeter (3.5 inch) diameter midrange tweeters located in the instrument panel (1).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker is located in each front door (2).
- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters located in each rear door (3).
- One 20.32 centimeter (8 inch) DVC subwoofer in the rear shelf (4).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side of the rear shelf (6).
- One 20.32 centimeter (8 inch) DVC subwoofer in the right rear quarter panel in the trunk (5).
- 12 channel 552 watts amplifier located under the instrument panel to the left of the steering column (7).
