Amplifier: Description and Operation

DESCRIPTION

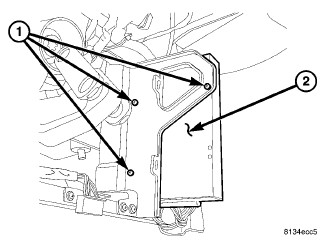

NOTE: Hands Free Module removed for clarity.

The amplifier is mounted to the left of the steering column under the instrument panel.
