Park Assist Sensor - Installation






INSTALLATION

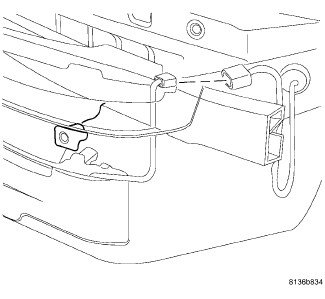

1. Position the Park Assist Sensor over the retaining housing and firmly snap into housing in rear fascia.
2. Install the rear fascia Rear Bumper Fascia - Installation.
3. Connect the battery negative cable.
