Audio Antenna Cable - Description

DESCRIPTION

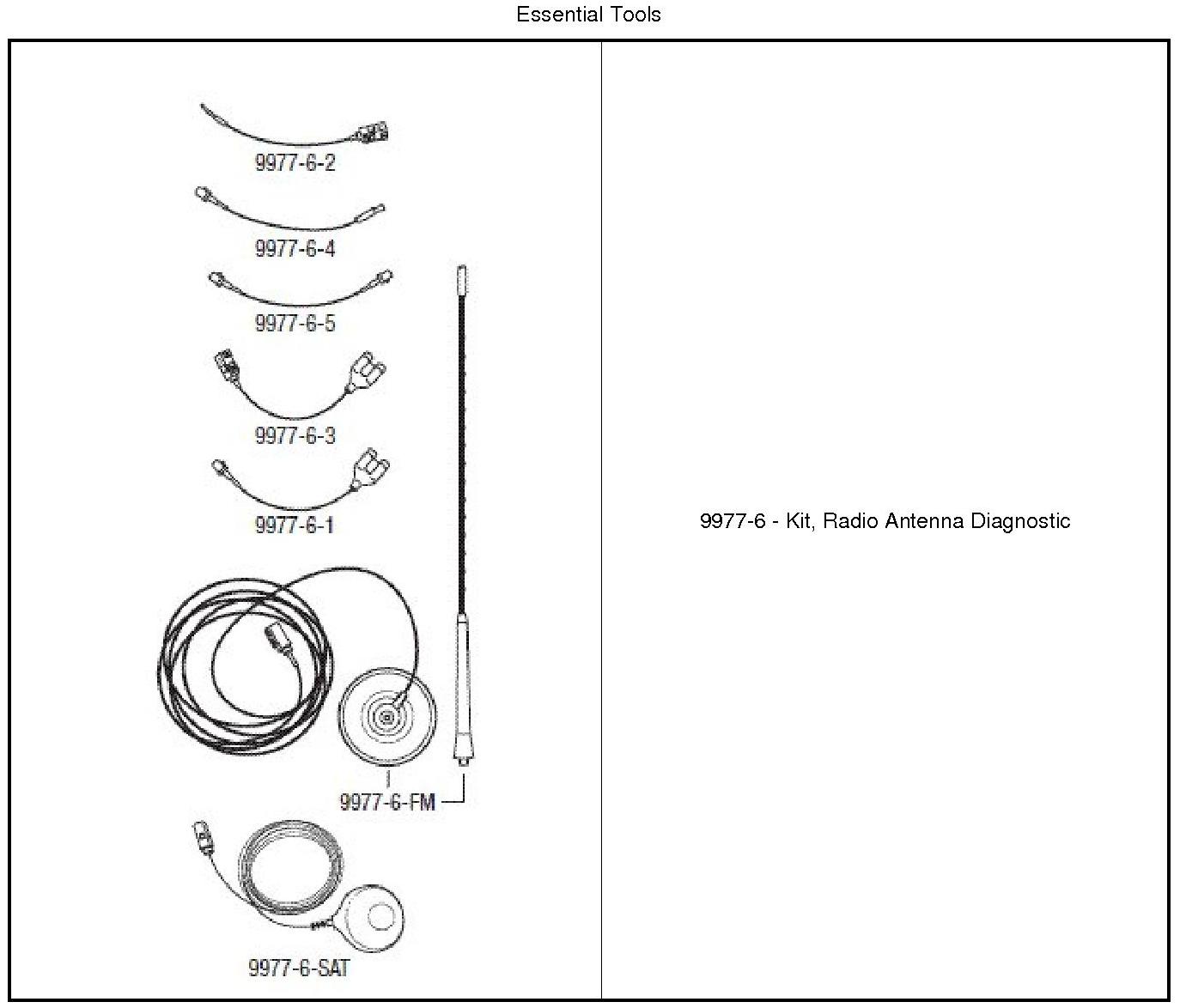

Special Tools:






The AM/FM coaxial antenna cables run from the radio to the Antenna Module which is mounted in the right C-Pillar.

There are two coaxial cables that run in series. The first cable runs from the back of the radio through the instrument panel harness and to the in-line white fakra connector that is behind the glove box and secured to the blower housing. The second coaxial runs from the in-line connector, down the right floor, with the body harness, and up the C-Pillar to the Antenna Module.

For Export Vehicles, the cables run the same but down the LEFT side of the vehicle.

For more information on testing the coaxial cables using the (9977-6) Perform the "Poor or No AM/FM Audio Reception. Poor Or No AM/FM Audio Reception
