Antilock Brake Module (ABS)

U140E-00-IMPLAUSIBLE VEHICLE CONFIGURATION DATA RECEIVED

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously.

- Set Condition:

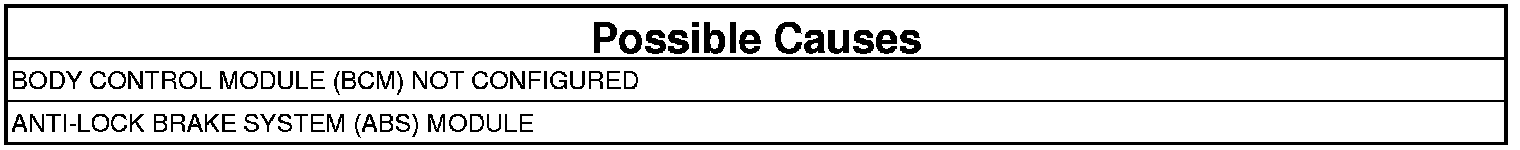

The Body Control Module (BCM) Indicates that the Vehicle Configuration data has not been programmed.





NOTE: If any other DTCs are present, repair them first before continuing with this diagnostic procedure.

NOTE: If the BCM has been replaced or is not configured address this issue first before continuing with this diagnostic procedure.

1. VERIFY THE DTC IS ACTIVE

NOTE: This DTC must be active for the results of this test to be valid.

1. Turn the ignition on.
2. With the scan tool, read and record the DTCs.
3. With the scan tool, read and record the Environmental Data to help identify the conditions in which the DTC was set.
4. With the scan tool, erase the DTCs.
5. Start the engine.
6. With the scan tool, read and record the DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Perform the ABS-INTERMITTENT CONDITION TEST. Testing and Inspection.

2. VERIFY THE BCM IS CONFIGURED CORRECTLY
1. With the scan tool, under BCM enter program network configuration and program the BCM to the vehicle configuration.
2. With the scan tool, erase the ABS DTCs.
3. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of ten seconds.
4. With the scan tool, read the ABS DTCs.

Does the DTC remain active?

Yes

- Using the schematics as a guide, check the Anti-Lock Brake System (ABS) Module pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the Anti-Lock Brake Module accordance with Service Information. Anti-Lock Brake System Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test complete.
