U0432

U0432-00-INVALID DATA RECEIVED FROM MULTI - AXIS ACCELERATION SENSOR MODULE

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously with the ignition on, one valid CAN message received at least once.

- Set Condition:

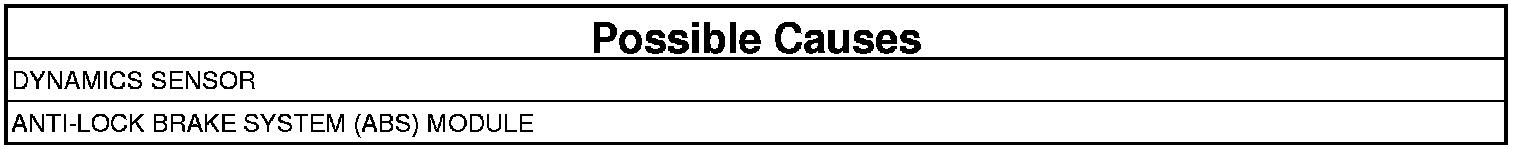

When the Anti-Lock Brake system (ABS) Module detects an incorrect CAN message from the Dynamics Sensor.





1. VERIFY THE DTC IS ACTIVE

NOTE: This DTC must be active for the results of this test to be valid.

1. Perform any Technical Service Bulletins (TSBs) that may apply.
2. Turn the ignition on.
3. With the scan tool, read and record the DTCs.
4. With the scan tool, read and record the Environmental Data to help identify the conditions in which the DTC was set.
5. With the scan tool, erase the DTCs.
6. Start the engine.
7. With the scan tool, read the DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Perform the ABS-INTERMITTENT CONDITION TEST. Testing and Inspection.

2. ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
1. Replace the Dynamics Sensor. Dynamics Sensor - Removal.Perform the ABS VERIFICATION TEST. ABS Verification Test.
2. Turn the ignition on.
3. With the scan tool, record and erase DTCs.
4. Cycle the ignition switch from off to on.
5. With the scan tool, read DTCs.

Is the DTC still active?

Yes

- Replace the Anti-lock Brake System (ABS) Module. Anti-Lock Brake System Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
