Antilock Brake Module (ABS)

U0429-00-IMPLAUSIBLE DATA RECEIVED FROM SCM

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously with the ignition on, one valid CAN message received at least once, and no U0002-88-CAN C Bus Off Performance DTC present.

- Set Condition:
When the Anti-Lock Brake System (ABS) Module detects an incorrect CAN message from the Steering Control Module (SCM).





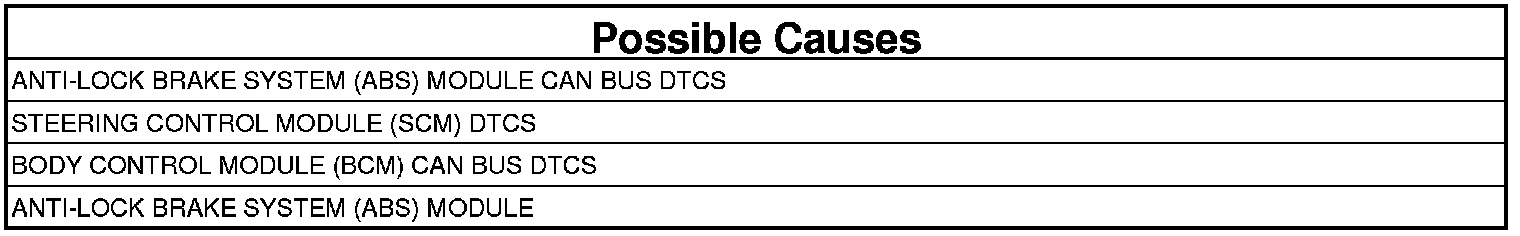

NOTE: Check for DTCs in the associated module before continuing with this diagnostic procedure.

1. VERIFY THE DTC IS ACTIVE

NOTE: This DTC must be active for the results of this test to be valid.

1. Perform any Technical Service Bulletins (TSBs) that may apply.
2. Turn the ignition on.
3. With the scan tool, record and erase the DTCs.
4. Cycle the ignition switch from off to on.
5. With the scan tool, read the DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Perform the ABS-INTERMITTENT CONDITION TEST. Testing and Inspection.

2. CHECK IF STEERING COLUMN MODULE (SCM) DTCS ARE PRESENT
1. With the scan tool, read the DTCs.

Are there any SCCM DTCs present?

Yes

- Perform the appropriate diagnostic procedures. Testing and Inspection.

No

- Go To 3

3. CHECK IF BODY CONTROL (BCM) CAN BUS DTCS ARE PRESENT
1. With the scan tool, read the BCM DTCs.

Are there any BCM CAN BUS DTCs present?

Yes

- Perform the appropriate diagnostic procedures. Body Control Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Using the schematics as a guide, check the Anti-Lock Brake System (ABS) Module pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the Anti-Lock Brake Module. Anti-Lock Brake System Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.
