Park Assist Module (PAM)

U0422-00-IMPLAUSIBLE DATA RECEIVED FROM BODY CONTROL MODULE

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Park Assist Module supply voltage between 9-16 volts. Ignition in Run/Start.

- Set Condition:
Incorrect data received from the Body Control Module (BCM).





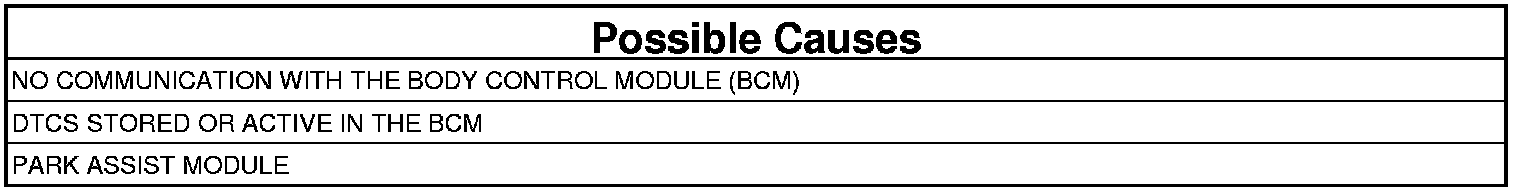

1. CHECK FOR AN ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. Turn the ignition on.
2. With the scan tool, read Park Assist Module DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. VERIFY THE BCM IS ACTIVE ON THE CAN BUS
1. With the scan tool, select ECU View.
2. Verify that the BCM is active on the bus.

Is the BCM active on the bus?

Yes

- Replace and program the Park Assist Module. Park Assist Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Perform the No Response from BCM diagnostic procedure. No Response From BCM (Body Control Module)
- Perform the BODY VERIFICATION TEST. Body Verification Test.
