U0416

U0416-IMPLAUSIBLE DATA RECEIVED FROM ESP

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously while the system is active.

- Set Condition:
Implausible data has been received over the bus from the Electronic Stability Program (ESP) in the ABS Module.





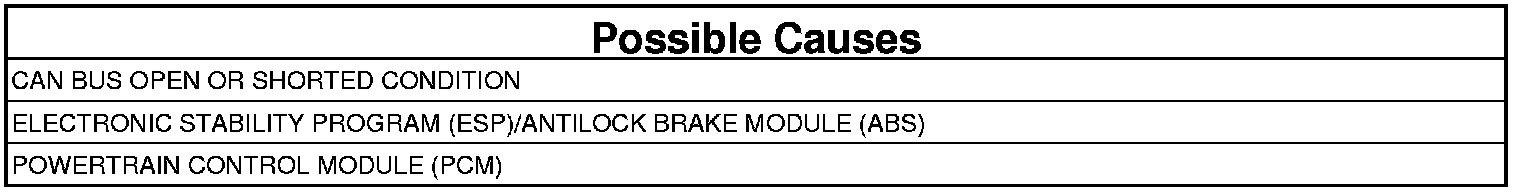

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. ACTIVE DTC

NOTE: Diagnose all CAN communication DTCs before continuing.

1. Turn the ignition on.
2. With a scan tool, view DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Perform the Stored Lost Communication DTCs diagnostic procedure. Stored Lost Communication DTCs

2. ABS/ESP COMMUNICATION RELATED DTCS IN OTHER MODULES
1. With a scan tool check for ABS/ESP communication related DTCs in other modules on the CAN Bus.

Are there any ESP communication related DTCs in other modules on the CAN Bus at this time?

Yes

- Perform the U0121-00-Lost Communication with ABS Module diagnostic procedure. U0121-00

No

- Replace and program the Powertrain Control Module (PCM). PCM/ECM Reprogramming
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
