P1614

P1614-ECU RESET/RECOVERY OCCURRED

For a complete wiring diagram Refer to the Wiring Information.

Theory of Operation

The purpose of the diagnostic is to determine the reason of a reset after the reset occurred. Some of these are initiated by the Transmission Control Module (TCM) software and others may be caused by an under voltage condition. If the TCM detects a condition for initiating a reset, the reason of the reset is stored in an area of Random Access Memory (RAM) that is not initialized during TCM startup. Upon TCM startup this information is read out to store an appropriate DTC indicating the reason of the reset.

- When Monitored:
Reset monitoring is performed during initialization which occurs at power-up or after a reset.

- Set Condition:
A failure is detected if one of the following conditions occurs: Low voltage condition, watchdog communication failure, Shift-By Wire safety functions indicate a failure, I/O safety functions indicate a failure.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. 8HP45 Pre-Diagnostic Troubleshooting Procedure

1. CHECK IF DTC IS CURRENT

NOTE: The Transmission Control Module stores under Environmental Data the transmission operating conditions when the DTC was set. Before clearing any DTCs, record all information pertaining to the DTC.

1. With the scan tool, CLEAR transmission DTCs.
2. Using the Environmental Data previously recorded, drive the vehicle and try to duplicate the condition in which the DTC set.

Does the DTC reset?

Yes

- Go To 2

No

- Go To 3

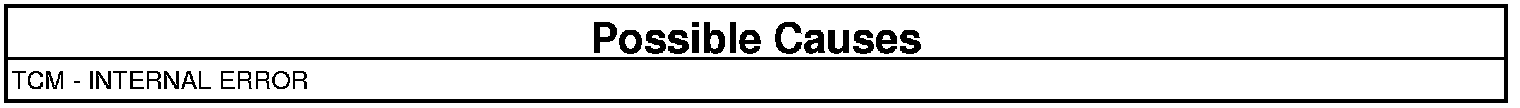

2. TRANSMISSION CONTROL MODULE ASSEMBLY (TCMA)

If there are no possible causes remaining, view repair.

Repair

- Using the schematics as a guide, check the TCMA terminals for corrosion, damage or terminal push out. Pay particular attention to power and ground circuits. Check Service Information Tune-ups or Service Bulletins for possible causes that may apply. If the DTC returns, replace and program the TCMA. Valve Body - Removal.
- Perform the TRANSMISSION VERIFICATION TEST. Verification Tests.

3. INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
4. Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the TRANSMISSION VERIFICATION TEST. Verification Tests.

No

- Test Complete.
