P0685
P0685-AUTO SHUTDOWN RELAY CONTROL CIRCUIT

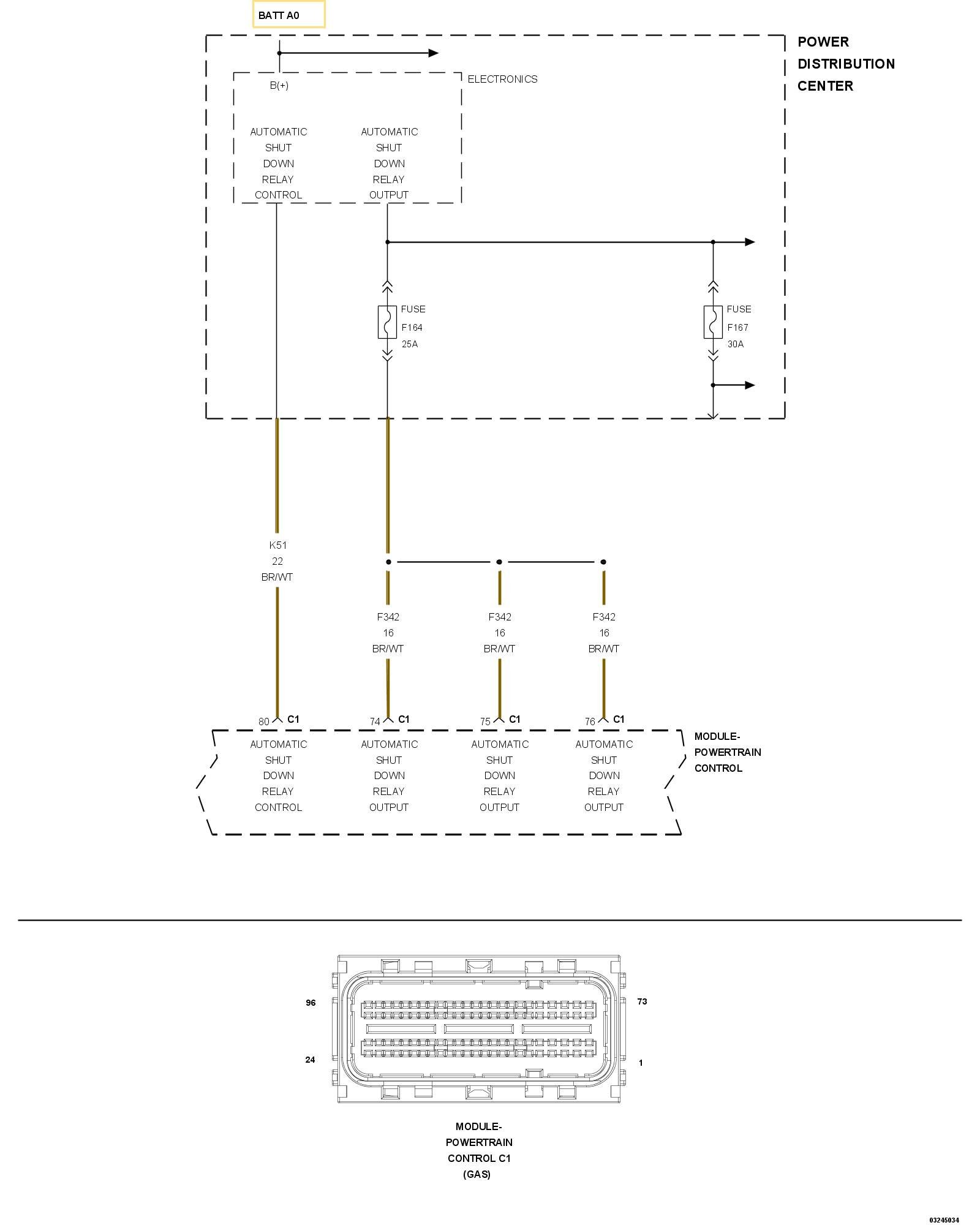

For a complete wiring diagram, refer to the Wiring Information.
- When Monitored:
With the ignition on. Battery voltage greater than 10.4 Volts.
- Set Condition:
The actual ASD state is not equal to the desired ASD state. One Trip Fault. Three good trips to turn off the MIL.

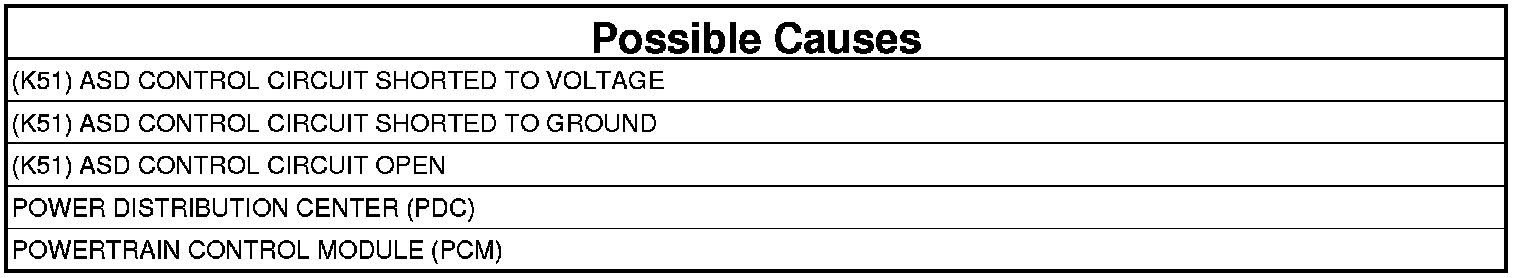

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.
1. ACTIVE DTC
1. Ignition on, engine not running.
2. With the scan tool, select View DTCs.
Is the DTC Active at this time?
Yes
- Go To 2
No
- Perform the INTERMITTENT CONDITION diagnostic procedure. Intermittent Condition Test
2. ASD CONTROL OPERATION FROM THE PCM
1. Turn the ignition off.
2. With a 12-volt test light connected to battery voltage, back probe the (K51) ASD Control circuit in the PDC harness connector.
3. Ignition on, engine not running.
4. Using the scan tool in the PCM, actuate the ASD.
Does the test light illuminate brightly and flash on an off?
Yes
- NOTE: Before continuing, check the PDC harness terminals for corrosion, damage or terminal push out. Repair as necessary.
If OK, replace the PDC.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No
- Go To 3
3. (K51) ASD CONTROL CIRCUIT SHORTED TO VOLTAGE
1. Stop the ASD actuation.
2. Ignition on, engine not running.
3. Measure the voltage on the (K51) ASD Control circuit at the PDC harness.
Is there any voltage present?
Yes
- Repair the short to voltage in the (K51) ASD Control circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test
No
- Go To 4
4. (K51) ASD CONTROL CIRCUIT OPEN
1. Turn the ignition off.
2. Measure the resistance of the (K51) ASD Control circuit from the PDC harness to the appropriate terminal of PCM harness connector.
Is the resistance below 5.0 Ohms?
Yes
- Go To 5
No
- Repair the open in the (K51) ASD Control circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
5. (K51) ASD CONTROL CIRCUIT SHORTED TO GROUND
1. Measure the resistance between ground and the (K51) ASD Control circuit in the PDC harness.
Is the resistance below 100 Ohms?
Yes
- Repair the short to ground in the (K51) ASD Control circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
No
- Go To 6
6. POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the related PDC and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the PDC and Powertrain Control Module connectors.
4. Perform any Technical Service Bulletins that may apply.
Were there any problems found?
Yes
- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
No
- Replace and program the Powertrain Control Module (PCM). PCM/ECM Reprogramming
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
