P060A

P060A-INTERNAL CONTROL MODULE MONITORING PROCESSOR PERFORMANCE

For a complete wiring diagram Refer to the Wiring Information.

Theory of Operation

The purpose of the diagnostic is to monitor the displayed gear position signal in the cluster which is determined using two separate calculations within the Transmission Control Module (TCM). The comparison between the results of the two calculations is evaluated before the displayed gear position is sent to the cluster on the CAN BUS.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The failure is detected if the result of the comparison of the two gear position calculations are not equal.





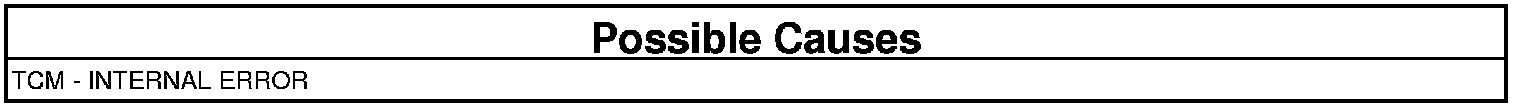

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. 8HP45 Pre-Diagnostic Troubleshooting Procedure

TRANSMISSION CONTROL MODULE ASSEMBLY (TCMA)

View repair

Repair

- Using the schematics as a guide, check the TCMA terminals for corrosion, damage or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the TCMA. Valve Body - Removal.
- Perform the TRANSMISSION VERIFICATION TEST. Verification Tests
