With Column Shift

P0607-ECU INTERNAL PERFORMANCE - ESM (COLUMN SHIFT)

For a complete wiring diagramRefer to the Wiring Information

Theory of Operation

The Electronic Shift Module (ESM) performs various internal tests to verify proper controller operation. This DTC indicates that there is an issue with the Shifter's internal processor.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
If the Electronic Shift Module (ESM) detects an error with the optical sensors or internal checksum value is not correct.





Always perform the NAG1 Pre-Diagnostic Troubleshooting procedure before proceeding. NAG1 Pre-Diagnostic Troubleshooting Procedure

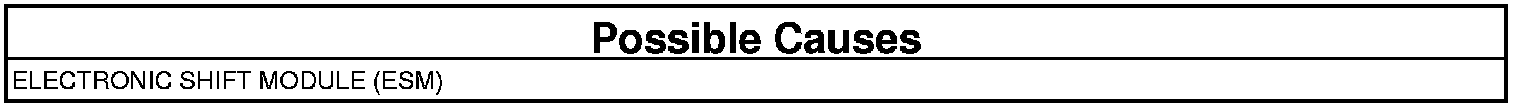

ELECTRONIC SHIFT MODULE

View repair

Repair

- Using the schematics as a guide, check the Electronic Shift Module (ESM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the ESM (Steering Column).
- Perform NAG1 TRANSMISSION VERIFICATION TEST. NAG1 Transmission Verification Test
