P0600






P0600-SERIAL COMMUNICATION LINK

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
Internal Bus communication failure between processors. One Trip Fault. Three good trips to clear.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

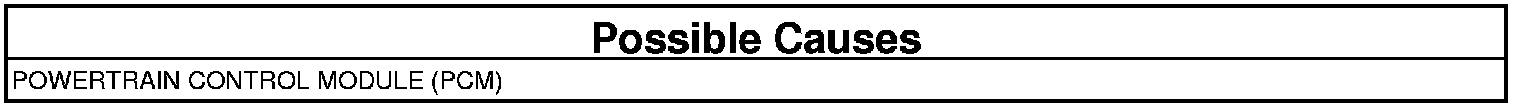

POWERTRAIN CONTROL MODULE (PCM)

NOTE: Diagnose any CMP or CKP Sensor faults before continuing. Check for intermittent loose CMP or CKP connections.

The Powertrain Control Module is reporting internal errors, view repair to continue.

Repair

- Replace and program the Powertrain Control Module. PCM/ECM Reprogramming
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
