Antilock Brake Module (ABS)

C2206-00-VEHICLE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Ignition on.

- Set Condition:
This DTC will set if any of the learned Vehicle Configuration data from the CAN Bus has changed.





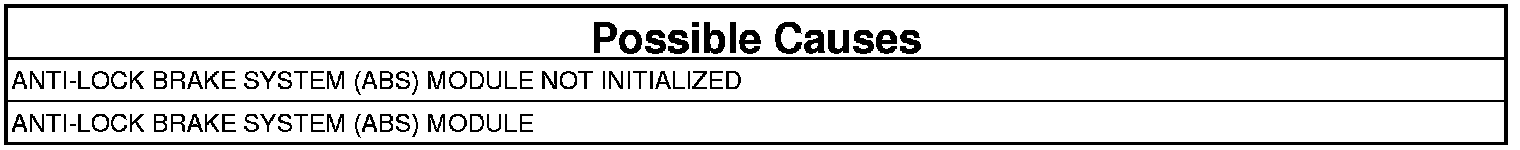

NOTE: If the BCM has been serviced make sure that the Restore Vehicle Configuration is performed before continuing with this diagnostic procedure.
INITIALIZE THE ABS MODULE

NOTE: Diagnose and repair any Powertrain Control Module (PCM), VIN or Communication DTCs before continuing with this diagnostic procedure.

NOTE: If C2202-00-Original VIN Mismatch / Missing is set along with this DTC, perform the diagnostic procedure for C2202-00 before continuing with this test.

1. Perform any Technical Service Bulletins that may apply.
2. With the scan tool, under "Miscellaneous Functions" run the ABS Initialization routine.
3. Turn ignition off to the lock position.
4. Cycle the ignition from off to on.
5. Wait ten seconds.
6. With the scan tool, read DTCs.

Does the DTC remain active?

Yes

- Replace the Anti-lock Brake System (ABS) Module. Anti-Lock Brake System Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time.
