Adaptive Cruise Control Module (ACC)

C2206-00-VEHICLE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously monitored with the engine running, the Adaptive Cruise Control (ACC) Module voltage at battery voltage, and the ACC Module in normal mode.

- Set Condition:
Vehicle configuration does not match. The ACC module will disable the ACC system and the SERVICE ACC message will display in the Electronic Vehicle Information Center (EVIC). Once the Diagnostic Trouble Code (DTC) goes to stored, the ACC system will return to normal operation. After a successful learning process the active DTC will be cleared automatically.





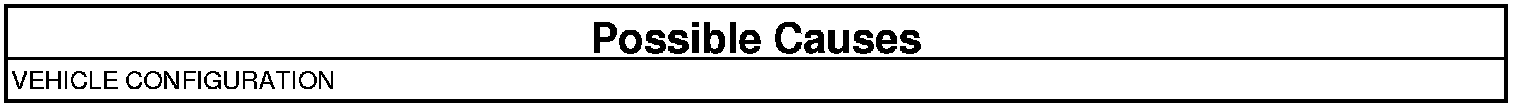

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.
ACC MODULE CHANGED

NOTE: If the ACC module is swapped from another vehicle performing the horizontal sensor alignment procedure will resolve the concern.

Was the ACC Module replaced with one from another vehicle?

Yes

- Adjustments and preform the horizontal sensor alignment procedure.

No

- Replace the ACC Module.
- Perform the ACC MODULE VERIFICATION TEST. Adaptive Cruise Control (ACC) Verification Test.
