Adaptive Front Lighting System

C2205-00-STEERING ANGLE SENSOR INTERNAL

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

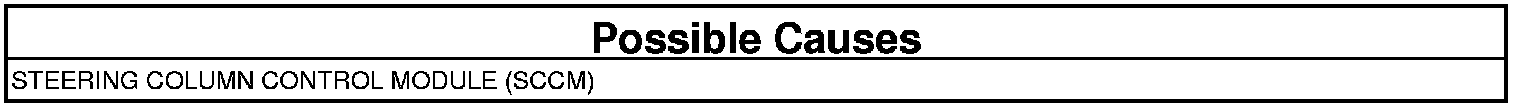

The Steering Angle Sensor (SAS) for this vehicle is integral to the Steering Column Control Module (SCCM). Steering Column Module - Description.

- When Monitored:
With the ignition on.

- Set Condition:
The Steering Angle Sensor (SAS) has set an internal failure status.





CHECK FOR AN ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)

NOTE: If steering system service has been performed and the Steering Angle Sensor (SAS) has been installed incorrectly, this DTC may set. Refer to the Service Information to verify repairs have been performed correctly.

1. Turn the ignition on.
2. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Replace the Steering Column Control Module (SCCM). Steering Column Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
