C147D






C147D-FRONT AXLE DISCONNECT POWER SUPPLY CIRCUIT HIGH





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously.

- Set Condition:

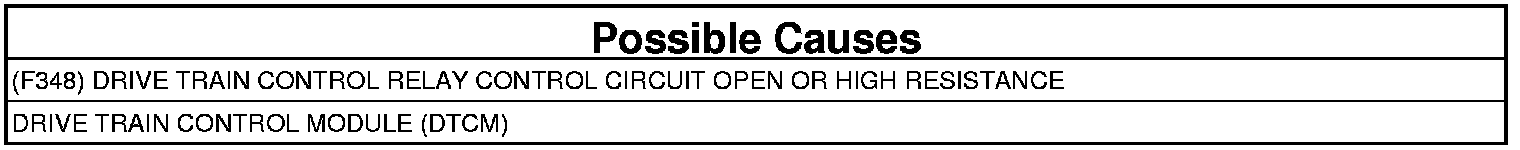

The Drive Train Control Module (DTCM) detects the Front Axle Lock Control circuit is open.





1. VERIFY THE DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, record and erase DTCs.
3. With the scan tool, read DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Go To 4

2. (F348) DRIVE TRAIN CONTROL RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE




1. Turn the ignition off to the lock position.
2. Remove the FAD Relay.
3. Disconnect the DTCM harness connector.
4. Connect a jumper wire between the (F348) Drive Train Control Relay Control circuit and ground.
5. Ignition on, engine not running.
6. Using a 12-volt test light connected to 12-volts, check the (F348) Drive Train Control Relay Control circuit.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

- Go To 3

No

- Repair the (F348) Drive Train Control Relay Control circuit for an open or high resistance.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

3. DRIVE TRAIN CONTROL MODULE (DTCM)
1. Using the wiring diagram/schematic as a guide, inspect all wiring and connectors that pertain to this circuit.

Were any problems found?

Yes

- Repair as necessary.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

No

- Replace the Drive Train Control Module (DTCM). Drivetrain Control Module - Removal.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

4. INTERMITTENT WIRING HARNESS AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring harness and connectors specific to this circuit.
3. Wiggle test the wiring harness and connectors while monitoring the scan tool data relative to this circuit.
4. Using the scan tool, monitor the data related to this circuit while performing the wiggle test. Look for the data to change or for the DTC to reset.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

No

- Test Complete.
