C1465

C1465-FRONT AXLE DISCONNECT CONTROL CIRCUIT HIGH





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously.

- Set Condition:
The Drive Train Control Module (DTCM) detects the Front Axle Lock Control circuit is shorted high.





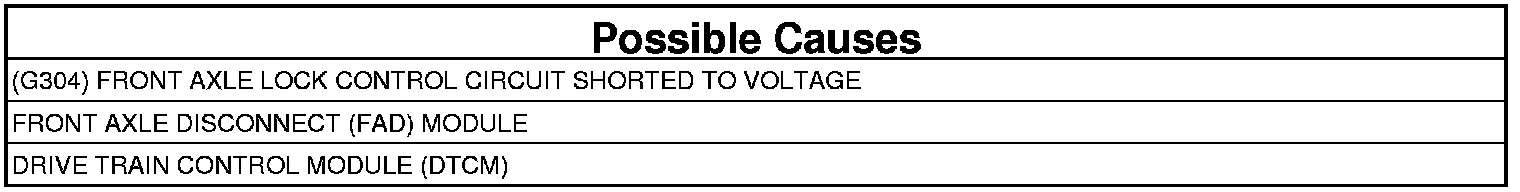

1. VERIFY THE DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, erase DTCs.
3. With the scan tool, read DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Go To 6

2. (G304) FRONT AXLE LOCK CONTROL CIRCUIT SHORTED TO VOLTAGE




1. Turn the ignition off to the lock position.
2. Disconnect the DTCM harness connector.
3. Disconnect the FAD Module harness connector.
4. Ignition on, engine not running.

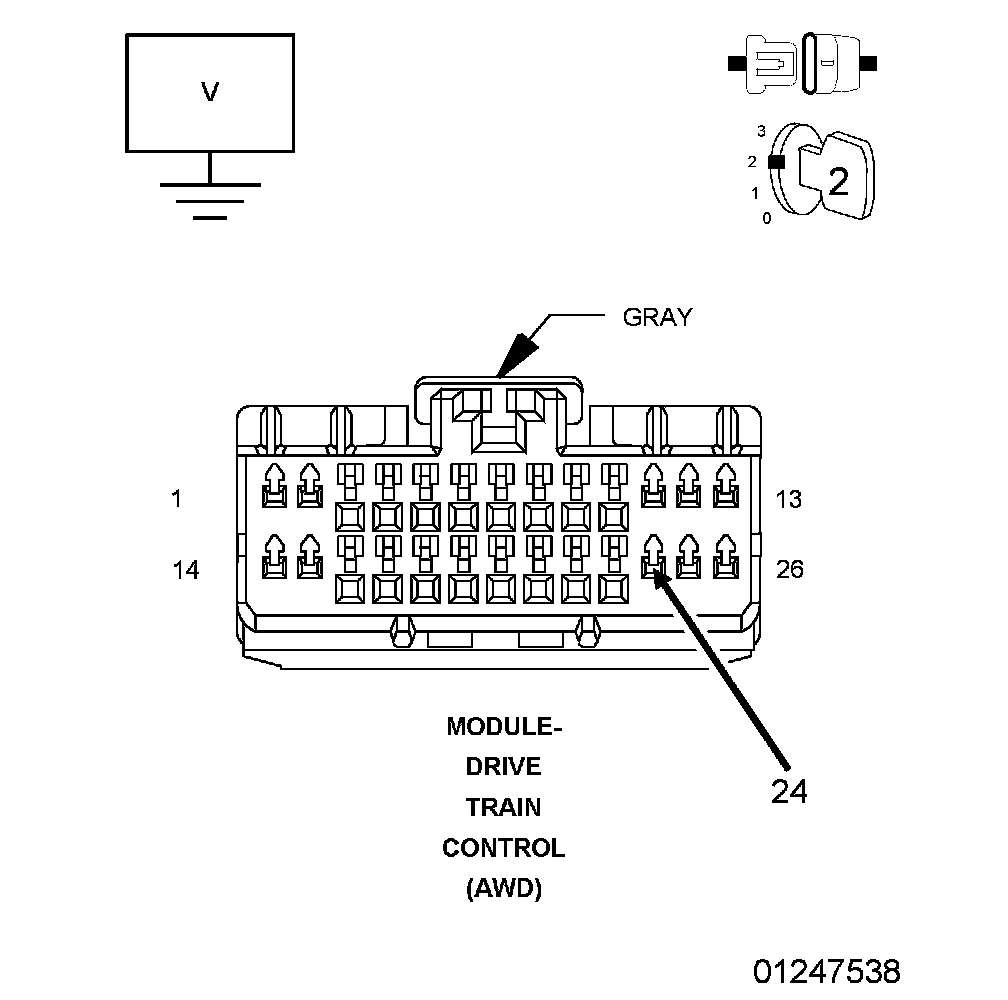

5. Measure the voltage between ground and the (G304) Front Axle Lock Control circuit.

Is any there voltage present?

Yes

- Repair the short to voltage in the (G304) Front Axle Lock Control circuit.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

No

- Go To 3

3. FRONT AXLE DISCONNECT (FAD) MODULE SHORTED TO VOLTAGE




1. Turn the ignition off to the lock position.
2. Connect the FAD Module harness connector.
3. Ignition on, engine not running.
4. Measure the voltage between ground and the (G304) Front Axle Lock Control circuit at the DTCM harness connector.

Is any there voltage present?

Yes

- Go To 5

No

- Go To 4

4. DRIVE TRAIN CONTROL MODULE (DTCM)
1. Using the wiring diagram/schematic as a guide, inspect all wiring and connectors that pertain to this circuit.

Were any problems found?

Yes

- Repair as necessary.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

No

- Replace the Drive Train Control Module (DTCM). Drivetrain Control Module - Removal.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

5. FRONT AXLE DISCONNECT (FAD) MODULE
1. Using the wiring diagram/schematic as a guide, inspect all wiring and connectors that pertain to this circuit.

Were any problems found?

Yes

- Repair as necessary.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test

No

- Replace the Front Axle Disconnect (FAD) Module.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

6. INTERMITTENT WIRING HARNESS AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring harness and connectors specific to this circuit.
3. Wiggle test the wiring harness and connectors while monitoring the scan tool data relative to this circuit.
4. Using the scan tool, monitor the data related to this circuit while performing the wiggle test. Look for the data to change or for the DTC to reset.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the DTCM VERIFICATION TEST. DTCM Verification Test.

No

- Test Complete.
