C006A-56

C006A-56-MULTI-AXIS ACCELERATION SENSOR- INVALID / INCOMPATIBLE CONFIGURATION





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Ignition on. Continuously monitored when speed is greater than 2 km/h (1 mph).

- Set Condition:
When the Anti-lock Brake System (ABS) Module detects a condition outside programmed parameters from the Dynamics Sensor.





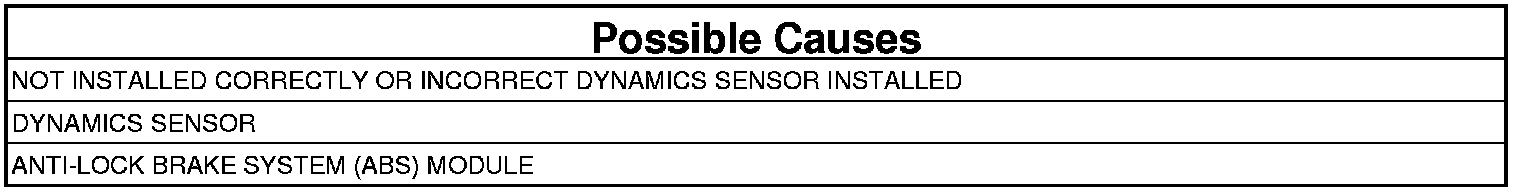

1. VERIFY THE DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, read and record ABS DTCs.
3. With the scan tool, read and record Environmental Data (EV Data).
4. With the scan tool, erase ABS DTCs.
5. Cycle the ignition switch.

WARNING: To avoid possible serious or fatal injury, check brake capability is available before road testing.

6. Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 20 km/h (6 and 12 mph).
7. Park the vehicle.
8. With the scan tool, read ABS DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- Perform the ABS-INTERMITTENT CONDITION TEST. Testing and Inspection.

2. CHECK THE DYNAMICS SENSOR INSTALLATION

NOTE: Dynamics Sensor installation and mounting bolt torque is crucial for proper operation.

1. Turn the ignition off to the lock position.
2. Check the Dynamics Sensor for damaged, modified, and bent mounting brackets.
3. Check the Dynamics Sensor mounting bolts for a loose or over tightened condition.
4. Verify the correct Dynamics Sensor's part number matches the vehicle.

Were any problems found?

Yes

- Repair as necessary.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Go To 3

3. ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
1. Replace the Dynamic Sensor. Dynamics Sensor - Removal.
2. Perform the ABS VERIFICATION TEST. ABS Verification Test.
3. Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 20 km/h (6 and 12 mph).
4. With the scan tool, read the DTCs.

Does the DTC remain active?

Yes

- Replace the Anti-Lock Brake System (ABS) Module. Anti-Lock Brake System Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time.
