C006A-28






C006A-28-MULTI-AXIS ACCELERATION SENSOR - SIGNAL BIAS LEVEL OUT OF RANGE / ZERO ADJUSTMENT FAILURE





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Ignition on.

- Set Condition:
When the ABS Module detects that one of the Dynamic Sensors offset levels are above reasonable levels.





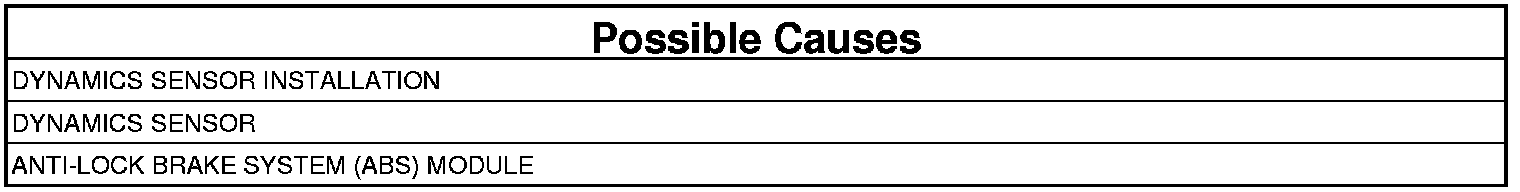

NOTE: If DTC C006A-49-MULTI- AXIS ACCELERATION SENSOR - INTERNAL ELECTRONIC FAILURE is present, follow the diagnostic procedure for that DTC first before continuing with this test.

1. CHECK THE DYNAMICS SENSOR INSTALLATION

NOTE: Dynamics Sensor installation and mounting bolt torque is crucial for proper operation.

1. Perform any Technical Service Bulletins (TSBs) that may apply.
2. Check the Dynamics Sensor for damaged, modified, and bent mounting brackets.
3. Check the Dynamics Sensor mounting bolts for a loose or over tightened condition.

Were any problems found?

Yes

- Repair as necessary.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Go To 2

2. ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
1. Turn the ignition off to the lock position.
2. Replace the Dynamic Sensor. Dynamics Sensor - Removal.
3. Perform the ABS VERIFICATION TEST. ABS Verification Test.
4. Test drive the vehicle on mainly straight road conditions at a velocity between 15 and 35 km/h (9 and 22 mph).
5. With the scan tool, read the DTCs.

Does the DTC remain active?

Yes

- Replace the Anti-Lock Brake System (ABS) Module. Anti-Lock Brake System Module - Removal.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.

No

- Test complete.
