Telematics Gateway Module (TGM)

B223B-00-VEHICLE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:

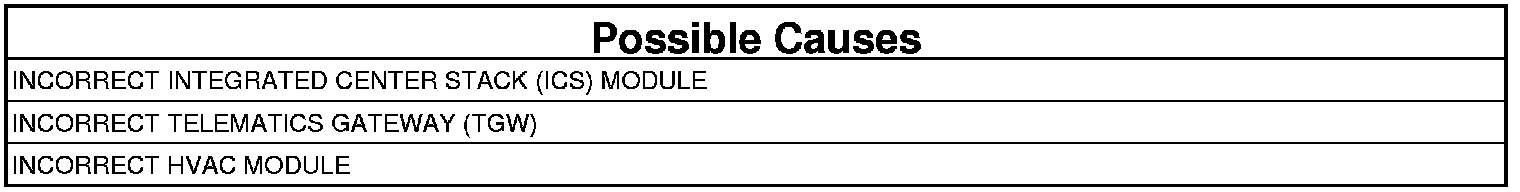

The Telematics Gateway (TGW) sets this DTC if the equipment levels do not match. For example a base Telematics Gateway is paired with a mid level Integrated Center Stack (ICS) Module





CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase the Hands Free Module DTCs.
3. Cycle the ignition switch from on to off, wait five seconds and then back to on.
4. With the scan tool, read the active Hands Free Module DTCs.

Does the scan tool display this DTC as active?

Yes

- Locate the incorrect component and replace as needed
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
