Blind Spot Module (BSM)

B223B-00-VEHICLE CONFIGURATION MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

For more information on the operation of the Blind Spot Monitor System, Blind Spot Monitoring System - Operation

- When Monitored:
With the ignition on.

Vehicle speed greater than 9.6 km/h (6 mph).

- Set Condition:

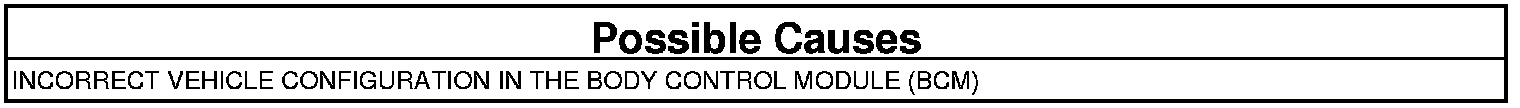

This DTC will set if the vehicle type is not identified or incorrectly identified.





CHECK FOR AN ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)

NOTE: Diagnose and repair any BCM VIN or Communication DTCs before continuing with this test.

1. Turn the ignition on.
2. With the scan tool, select View DTCs.

Does the scan tool display this DTC as active?

Yes

- Verify the correct vehicle configuration in the BCM.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Use the scan tool to read DTCs in all other modules. If any communication DTCs are present, perform the appropriate diagnostic procedure. Perform any Technical Service Bulletins that apply. If no problems are found, test is complete.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
