B2232

B2232-00-(PTS) PARKTRONICS INTERNAL

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The Park Assist Sensors are ultrasonic transceivers that are completely controlled by the Park Assist Module. The sensors transmit and receive ultrasonic signals. Each sensor has a voltage, signal, and return circuit to the module. The sensors communicate with the Park Assist Module using a dedicated serial bus communication circuit.

- When Monitored:
With the ignition on.

- Set Condition:
The Park Assist Module detects an internal failure.

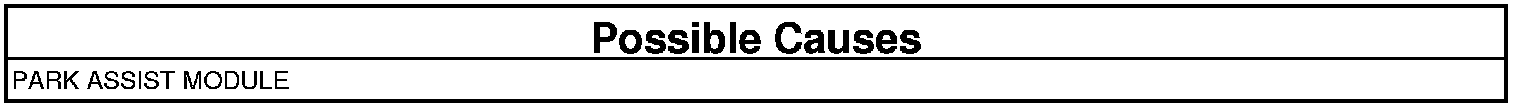

REPLACE THE PARK ASSIST MODULE

View Repair

Repair

- Replace the Park Assist Module. Park Assist Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
