Body Control Module (BCM)

B222C-00-VEHICLE CONFIGURATION NOT PROGRAMMED

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The same Body Control Module (BCM) for a vehicle can be used with different market and vehicle content applications. In order for the BCM to function properly, the vehicle configuration information must be correctly programmed into the module when the module is replaced.

- When Monitored:
With the ignition on.

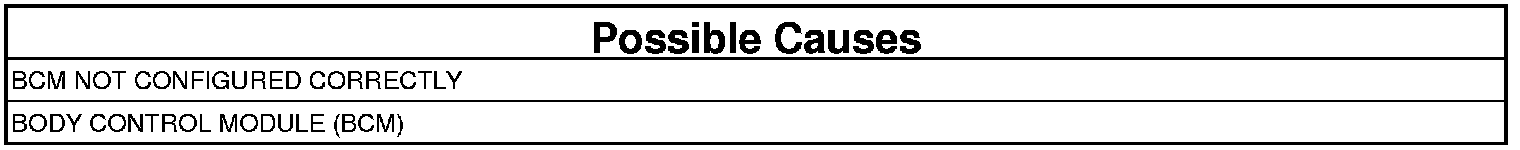

- Set Condition:
The Body Control Module (BCM) is not configured correctly to the vehicle.





1. CHECK FOR ACTIVE DTC
1. With the scan tool, read the active DTCs.
2. Cycle the ignition switch from off to on at least five times, leaving the ignition on for a minimum of 90 seconds per cycle.
3. With the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CONFIGURE THE BCM TO THE VEHICLE
1. With the scan tool, program the BCM to the vehicle configuration.
2. With the scan tool, erase BCM DTCs.
3. Cycle the ignition switch from off to on at least five times, leaving the ignition on for a minimum of 90 seconds per cycle.
4. With the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Inspect the wiring and connectors for damage or shorted circuits. If OK, replace and program the BCM. Body Control Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair is complete.
