Intrusion Transceiver Module (ITM)

B222A-00-VEHICLE LINE MISMATCH

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:

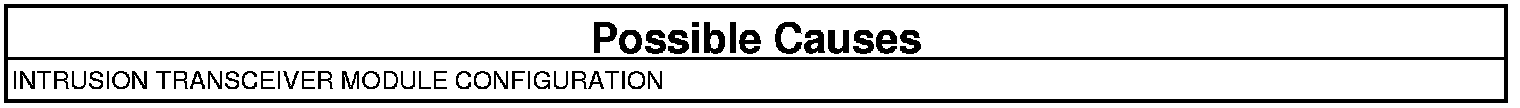

If the Intrusion Transceiver Module (ITM) is not configured.





CONFIGURE THE INTRUSION TRANSCEIVER MODULE
1. With the scan tool under miscellaneous functions, perform the initialization procedure for the Intrusion Transceiver Module.
2. Turn the ignition off and remove the key from the ignition.
3. Lock and close all doors to allow the VTSS to go from pre-arm to armed status and wait one minute.
4. Disarm the VTSS.
5. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Replace the Intrusion Transceiver Module. Intrusion Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
