B2223

B2223-00-(HFM) HANDS FREE PHONE INTERNAL

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Hands Free Module (HFM) detects an internal failure.

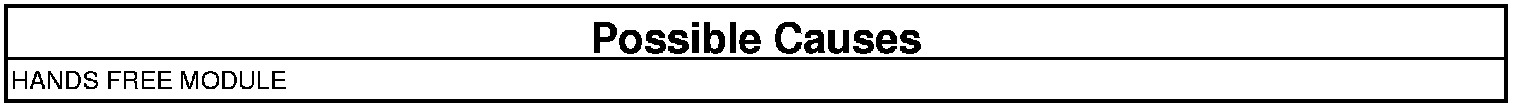

REPLACE THE HANDS FREE MODULE
1. When this DTC is active, replace the Hands Free Module (HFM).

Repair

- Replace the Hands Free Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
