B221F

B221F-00-AMPLIFIER INTERNAL

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Amplifier detects an internal failure.

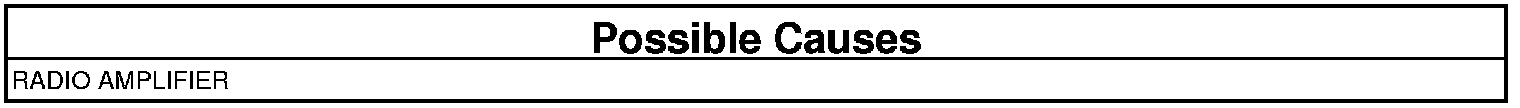

REPLACE THE RADIO AMPLIFIER
1. When this DTC is active, replace the Radio Amplifier.

Repair

- Replace the Amplifier. Amplifier - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
