B221E

B221E-00-RADIO INTERNAL

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:

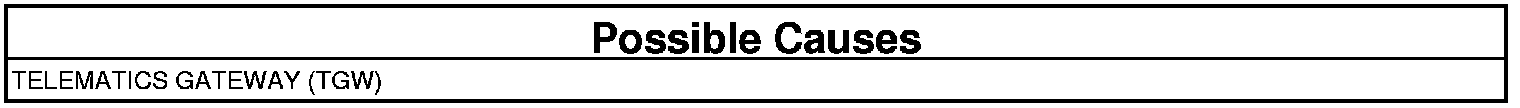

The Telematics Gateway (TGW) detects an internal failure.





REPLACE THE TELEMATICS GATEWAY (TGW)
1. When this DTC is active, replace the Telematics Gateway (TGW).

Repair

- Replace the Telematics Gateway (TGW). Telematics Gateway Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
