Driver Door Module (DDM)

B210C-17-BATTERY VOLTAGE INPUT - CIRCUIT ABOVE THRESHOLD

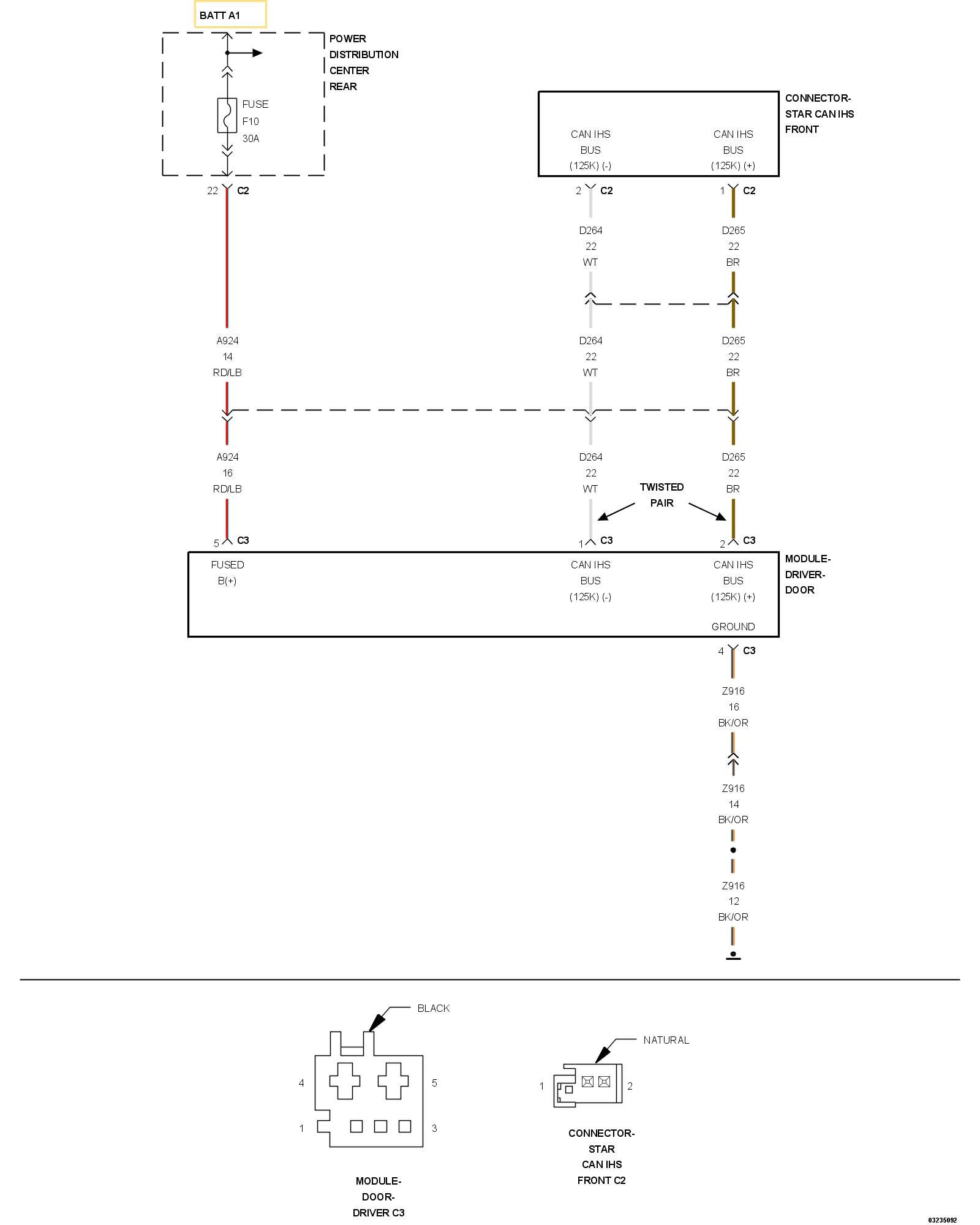

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
At all times.

- Set Condition:
Anytime the module senses voltage input above 15.9 volts, this code will set.

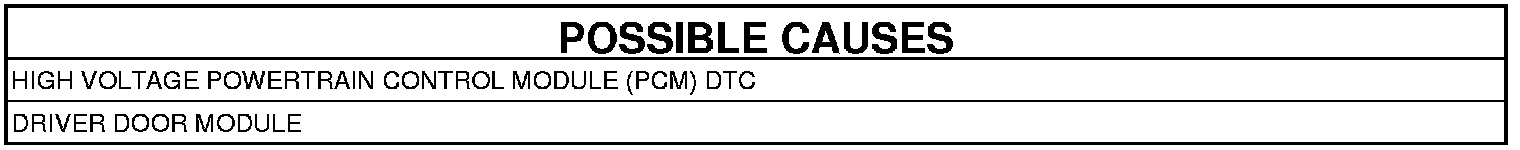

1. CHECK POWERTRAIN CONTROL MODULE (PCM) DTCs
1. With the scan tool, read the PCM DTCs.

Are there any Charging or Battery DTCs present?

Yes

- Testing and Inspection Perform the appropriate diagnostic procedure.

No

- Go To 2

2. TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase the DTCs.
2. Start the engine and run for two minutes.
3. With the scan tool, read the DTCs.

Does the scan tool display; B210C-17-BATTERY VOLTAGE INPUT - CIRCUIT ABOVE THRESHOLD?

Yes

- Replace the Driver Door Module. Door Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
