B1E6A-11

B1E6A-11-PASSENGER MIRROR FOLD CONTROL - CIRCUIT SHORT TO GROUND

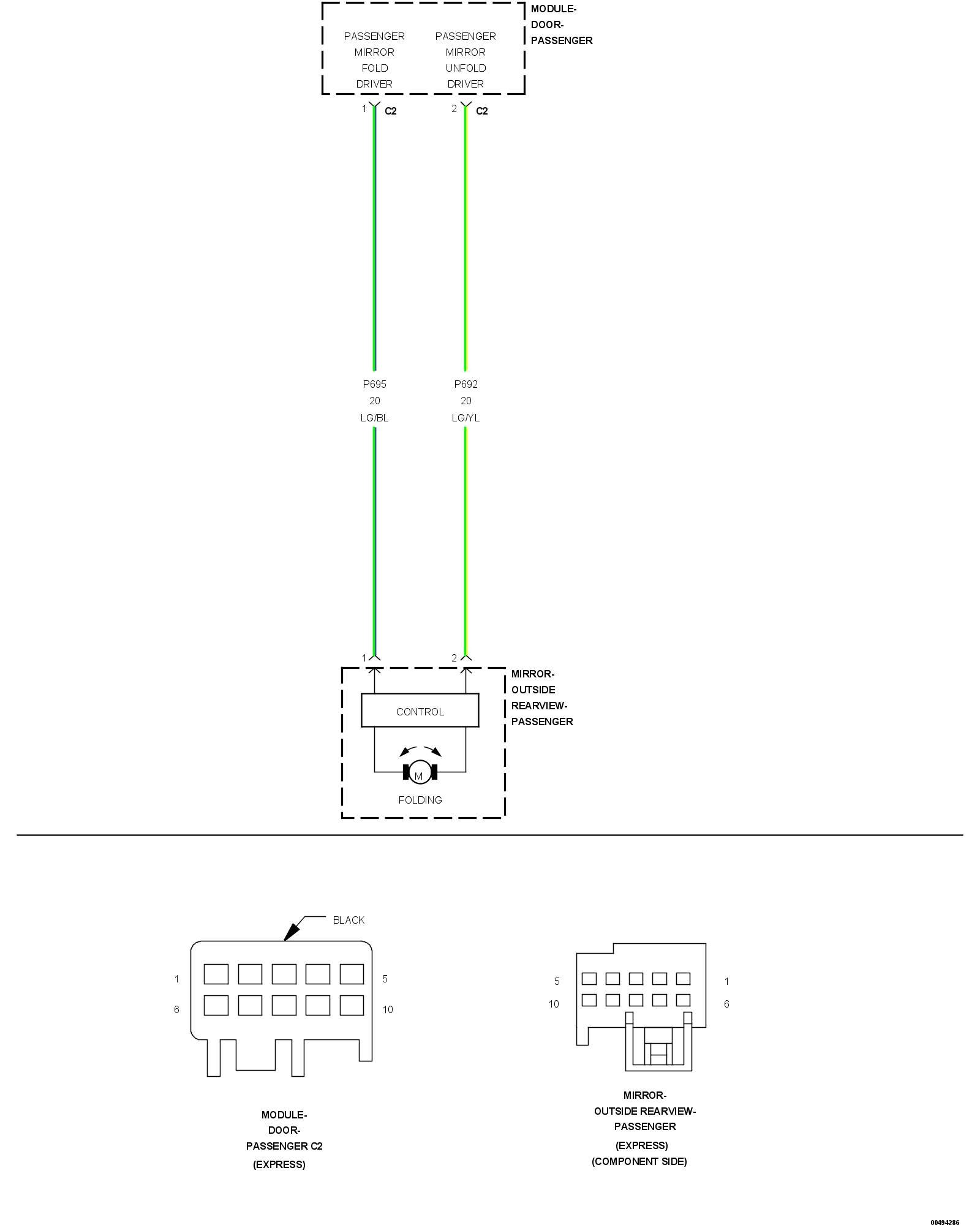

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously.

- Set Condition:

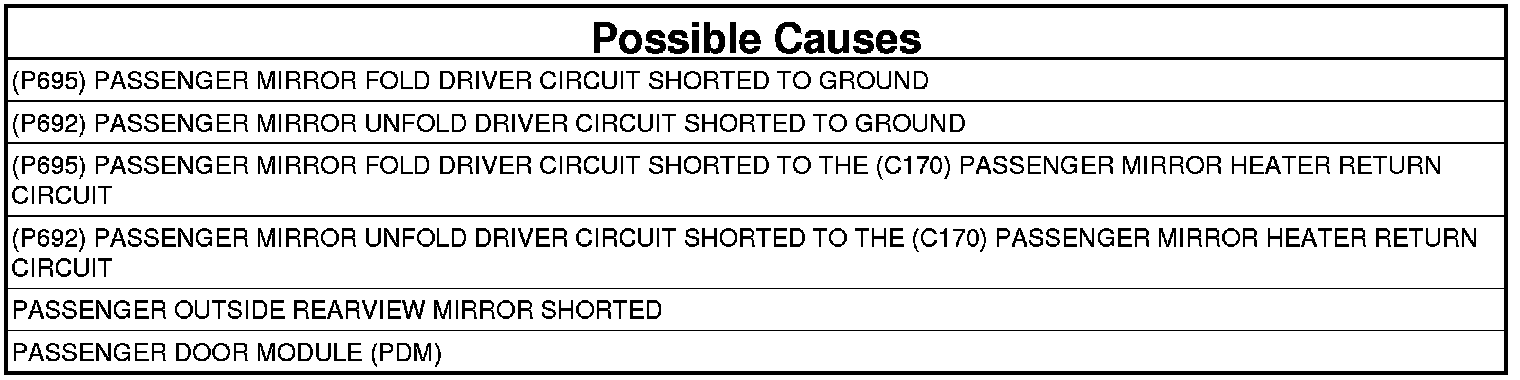

When the Passenger Door Module (PDM) senses a short low on the (P695) Passenger Mirror Fold Driver circuit or the (P692) Passenger Mirror Unfold Driver circuit for more than 10 ms.





1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase the Diagnostic Trouble Codes (DTCs).
3. Operate the Mirror Fold switch several times.
4. Cycle the ignition from on to off three times.
5. Turn the ignition on.
6. With the scan tool, read the DTCs.

Does the scan tool display; B1E6A-11-PASSENGER MIRROR FOLD CONTROL - CIRCUIT SHORT TO GROUND?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Repeat the test with the mirror adjusted in several different positions. If the DTC is now active, Go To 2. Otherwise, use the wiring diagram/schematic as a guide and inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK (P695) PASSENGER MIRROR FOLD DRIVER CIRCUIT AND (P692) PASSENGER MIRROR UNFOLD DRIVER CIRCUIT FOR A SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the Passenger Outside Rearview Mirror (Component Side) connector from the PDM C2 harness connector.

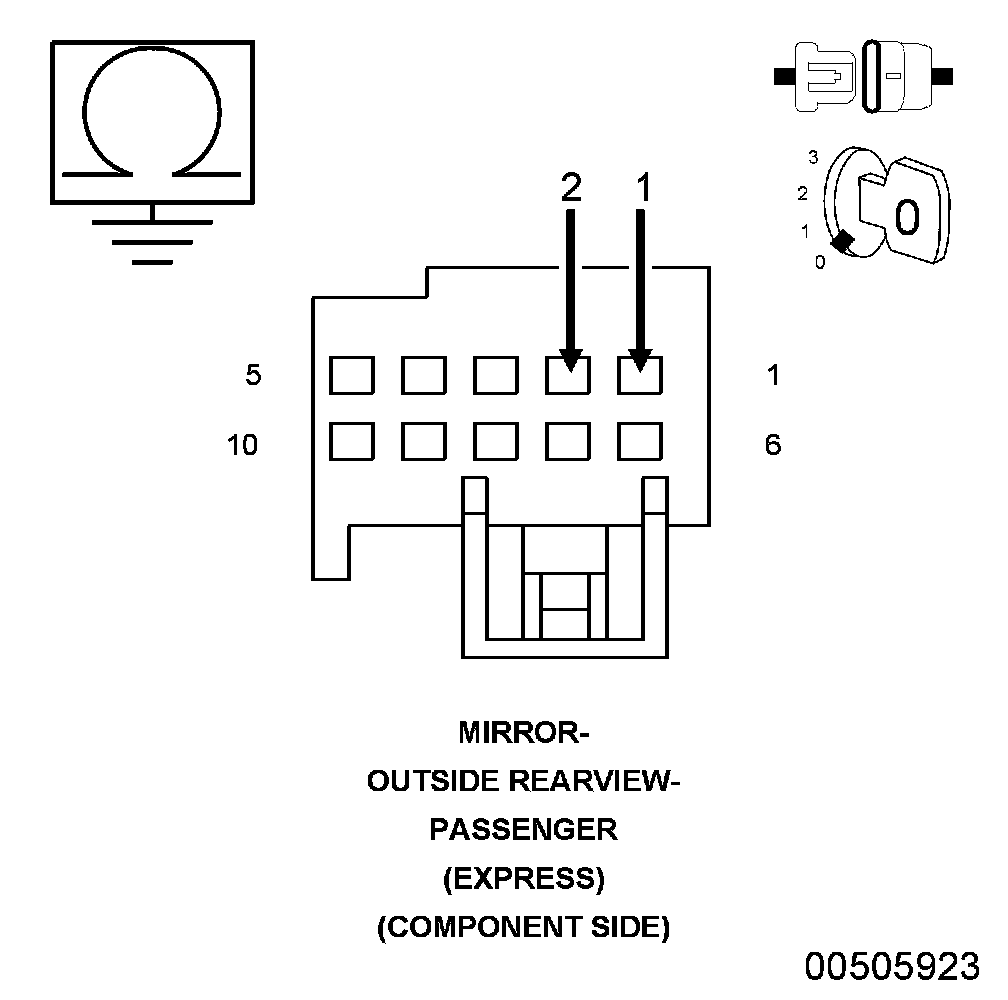

3. Measure the resistance of the (P695) Passenger Mirror Fold Driver circuit between ground and the Passenger Outside Rearview Mirror (Component Side) connector.
4. Measure the resistance of the (P692) Passenger Mirror Unfold Driver circuit between ground and the Passenger Outside Rearview Mirror (Component Side) connector.

Is the resistance below 10k Ohms for either measurement?

Yes

- Repair all circuits with a resistance below 10k ohms for a short to ground. If the wiring harness and connector are okay, replace the Passenger Outside Rearview Mirror. Outside Rearview Mirror - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No, with Heated Mirrors

- Go To 3

No, without Heated Mirrors

- Replace the Passenger Door Module (PDM). Door Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

3. CHECK (P695) PASSENGER MIRROR FOLD DRIVER CIRCUIT AND (P692) PASSENGER MIRROR UNFOLD DRIVER CIRCUIT FOR A SHORT TO THE (C170) PASSENGER MIRROR HEATER RETURN CIRCUIT

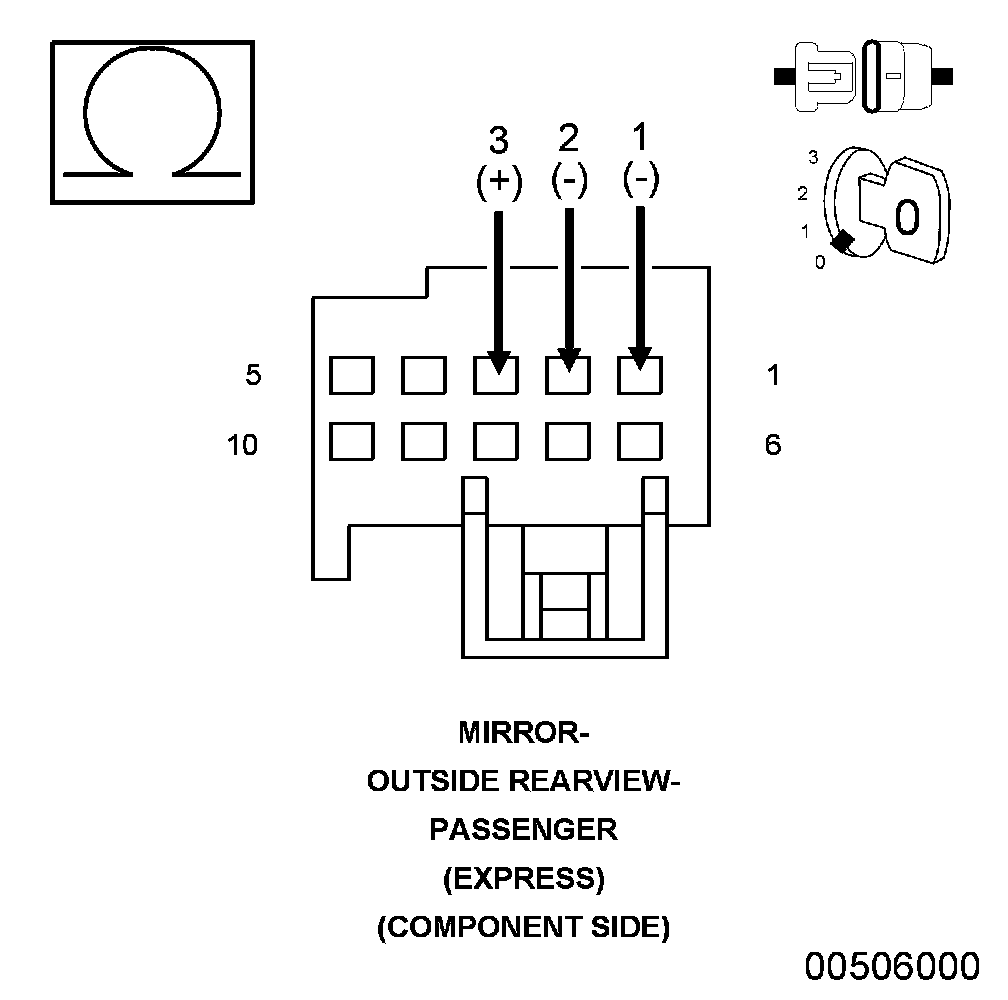

1. Measure the resistance between the (P695) Passenger Mirror Fold Driver circuit and the (C170) Passenger Mirror Heater Return circuit at the Passenger Outside Rearview Mirror (Component Side) connector.
2. Measure the resistance between the (P692) Passenger Mirror Unfold Driver circuit and the (C170) Passenger Mirror Heater Return circuit at the Passenger Outside Rearview Mirror (Component Side) connector.

Is the resistance below 10k Ohms for either measurement?

Yes

- Repair all circuits with a resistance below 10k ohms for a short to the (C170) Passenger Mirror Heater Return circuit. If the wiring harness and connector are okay, replace the Passenger Outside Rearview Mirror. Outside Rearview Mirror - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Passenger Door Module (PDM). Door Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
