B1D6F-11-SEAT FRONT VERTICAL POSITION SENSOR - CIRCUIT SHORT TO GROUND





For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The Memory System is made up of the Memory Seat Module (MSMD), Memory Switch, Driver Seat Switch, Tilt/Telescope Switch, multiple Seat Motors which also each contain a hall-effect position sensor, and the Tilt and Telescope Steering Motors, both of which contain a hall-effect position sensor.

When the Driver Seat Switch is used to command seat movement, a signal is sent from the Switch to the MSMD via a mux signal circuit. The MSMD will then command the appropriate Seat Motor or Motors to move the seat in the commanded direction as long as the Driver Seat Switch is held in that direction. When seat movement is commanded, the MSMD also powers the hall-effect position sensor located in each Seat Motor. These hall-effect sensors provide feedback to the MSMD in relation to the seat's position. The Tilt and Telescoping Steering operate in a similar manner, with the Tilt Switch and Telescope Switch sending a signal to the MSMD from the Steering Column Control Module (SCCM) via the Controller Area Network (CAN) bus circuit. The Tilt Motor and Telescope Motor are then commanded by the MSMD based on the Switch input. The Tilt Motor and Telescope Motor also each have a hall-effect position sensor.

The Memory Switch is used to set and recall memory seat and steering positions. When a Memory Switch button is pressed, a signal is sent from the Switch to the Driver Door Module (DDM) via a mux signal circuit. The DDM will then request the MSMD perform the function via the Controller Area Network (CAN) bus circuit. If the SET button on the Memory Switch is pressed, followed by the 1 or 2 button, the MSMD will store the seat and steering position based on the position inputs received from the hall-effect position sensor. If the 1 or 2 button on the Memory Switch is pressed, the MSMD will recall the stored position for that particular selection and return the seat and steering column to the stored position. Memory position may also be recalled using a linked FOBIK transmitter. For driver safety, the MSMD will prevent the memory recall function from being initiated if the transmission gear selector lever is not in the Park position or if the vehicle is moving. For further information Memory Seat Module - Operation.

- When Monitored:
The seat motor is activated.

- Set Condition:
If sensor voltage is not within a specified range. The DTC will only set when the seat switch is moved in the same direction three consecutive times.





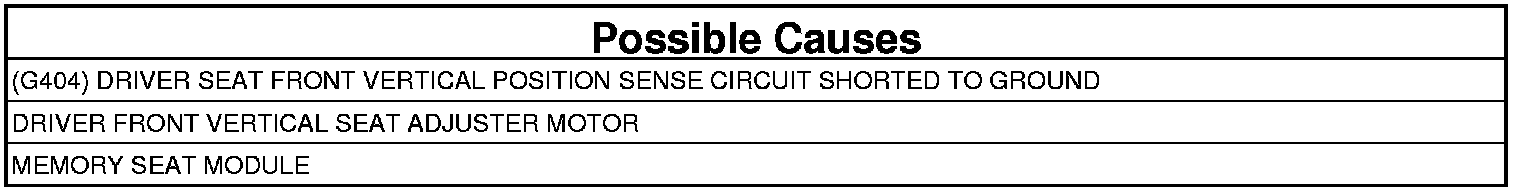

1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Move the Seat Switch in the front vertical position three times.
4. With the scan tool, read the active DTCs.

Does the scan tool display B1D6F-11-SEAT FRONT VERTICAL POSITION SENSOR - CIRCUIT SHORT TO GROUND?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the POWER SEAT SYSTEM VERIFICATION TEST. Power Seat System Verification Test.

2. CHECKING THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT




1. Disconnect the Driver Seat Front Vertical Adjuster Motor harness connector.
2. Measure the voltage between the (G404) Driver Seat Front Vertical Position Sense circuit and ground.

Is the voltage above 11 volts?

Yes

- Replace the Power Seat Track. Power Seats - Description.
- Perform the POWER SEAT SYSTEM VERIFICATION TEST. Power Seat System Verification Test.

No

- Go To 3

3. CHECKING THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT FOR A SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the MSMD C3 harness connector.
3. Measure the resistance between ground and the (G404) Driver Seat Front Vertical Position Sense circuit.

Is the resistance below 1K Ohms?

Yes

- Repair the short to ground in the (G404) Driver Seat Front Vertical Position Sense circuit.
- Perform the POWER SEAT SYSTEM VERIFICATION TEST. Power Seat System Verification Test.

No

- Go To 4

4. MEMORY SEAT MODULE (MSMD)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and harness connectors between the Driver Seat Front Vertical Adjuster Motor and the MSMD.
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Driver Seat Front Vertical Adjuster Motor and MSMD harness connectors.
4. Perform any Technical Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the POWER SEAT SYSTEM VERIFICATION TEST. Power Seat System Verification Test.

No

- Replace the MSMD. Memory Seat Module - Removal.
- Perform the POWER SEAT SYSTEM VERIFICATION TEST. Power Seat System Verification Test.
