B1862

B1862-11-PASSENGER WINDOW POSITION SENSOR POWER SUPPLY - CIRCUIT SHORT TO GROUND

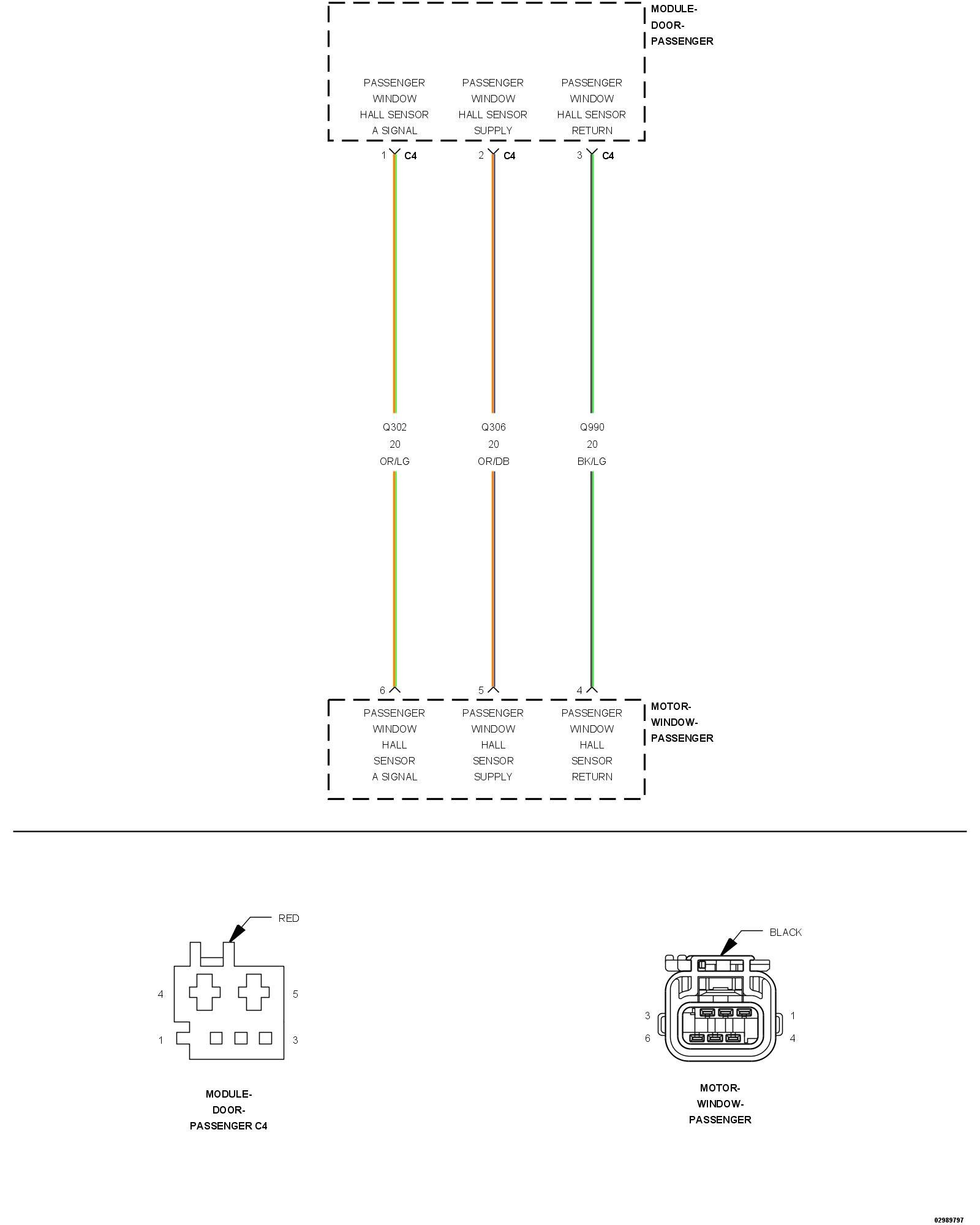

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The window motor contains a hall effect sensor to detect the window position. A hall effect sensor is a transducer that varies its output voltage in response to changes in magnetic field. If the motor looses its counts, it may perform erratically or in very short movements.

- When Monitored:
Whenever the module is awake.

- Set Condition:
When the Passenger Window Hall Sensor Supply circuit falls below 0.8 of a volt for over 480 ms., this code will set.





1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase the DTCs.
3. Operate the Passenger Window up and down several times.
4. Wait 30 seconds.
5. With the scan tool, read the DTCs.

Does the scan tool display; B1862-11-PASSENGER WINDOW POSITION SENSOR POWER SUPPLY - CIRCUIT SHORT TO GROUND?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. WINDOW MOTOR SHORTED




1. With the scan tool, erase the DTCs.
2. Turn the ignition off.

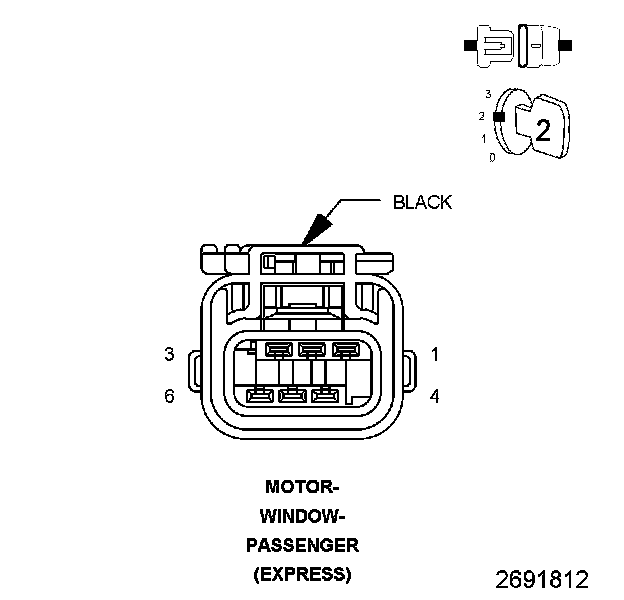

3. Disconnect the Passenger Express Window Motor connector.
4. Turn the ignition on.
5. Operate the passenger window switch up and down several times.
6. With the scan tool, read the DTCs.

Does the scan tool display; B1862-11-PASSENGER WINDOW POSITION SENSOR POWER SUPPLY - CIRCUIT SHORT TO GROUND?

Yes

- Go To 3

No

- Replace the Window Motor. Window Regulator Motor - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

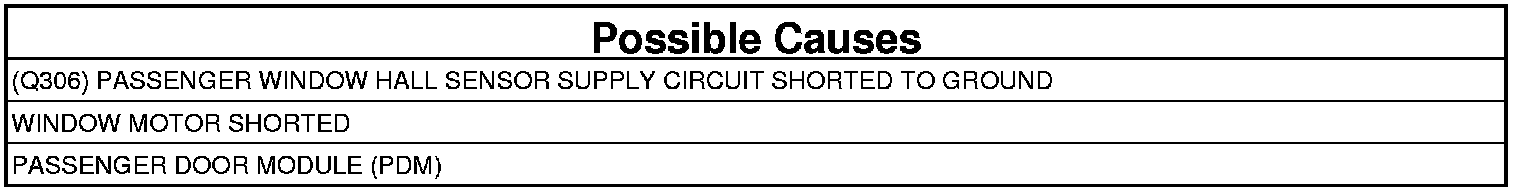

3. (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT SHORTED TO GROUND




1. Turn the ignition off.

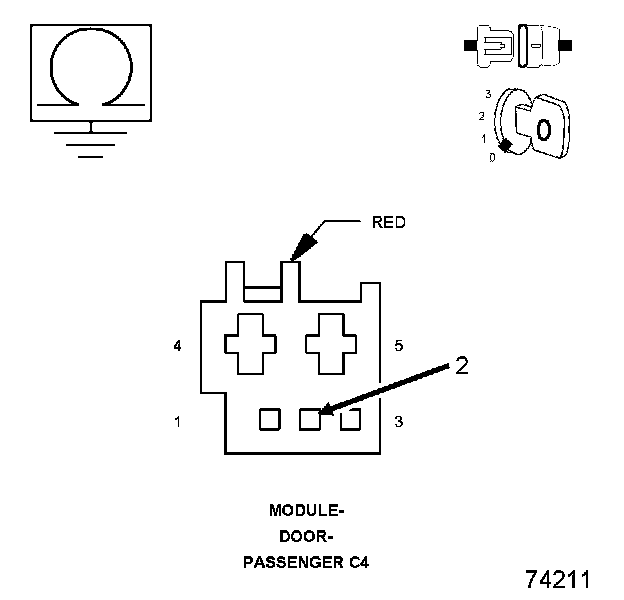

2. Disconnect the Passenger Door Module C4 harness connector.
3. Measure the resistance between Ground and the (Q306) Passenger Window Hall Sensor Supply circuit.

Is the resistance below 10k Ohms?

Yes

- Repair the short to ground in the (Q306) Passenger Window Hall Sensor Supply circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Passenger Door Module. Door Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
