B17F3

B17F3-00-AUTO HIGH BEAM SYSTEM AIM

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The DTC will be set if the target light source is not within the correctable limits of the mirror.





CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. Using the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

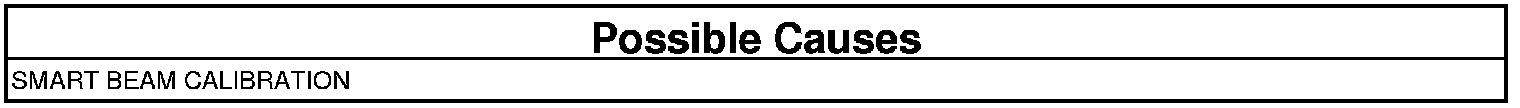

- Perform the Smart Beam Calibration. Smartbeam Adjustment And Calibration.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
