B1684
B1684-00-LEFT HEADLAMP LEVELING MOTOR CONTROL

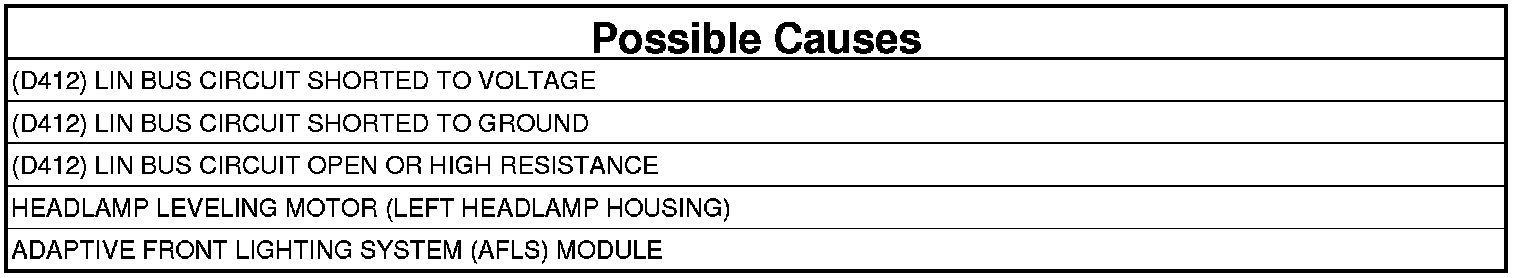

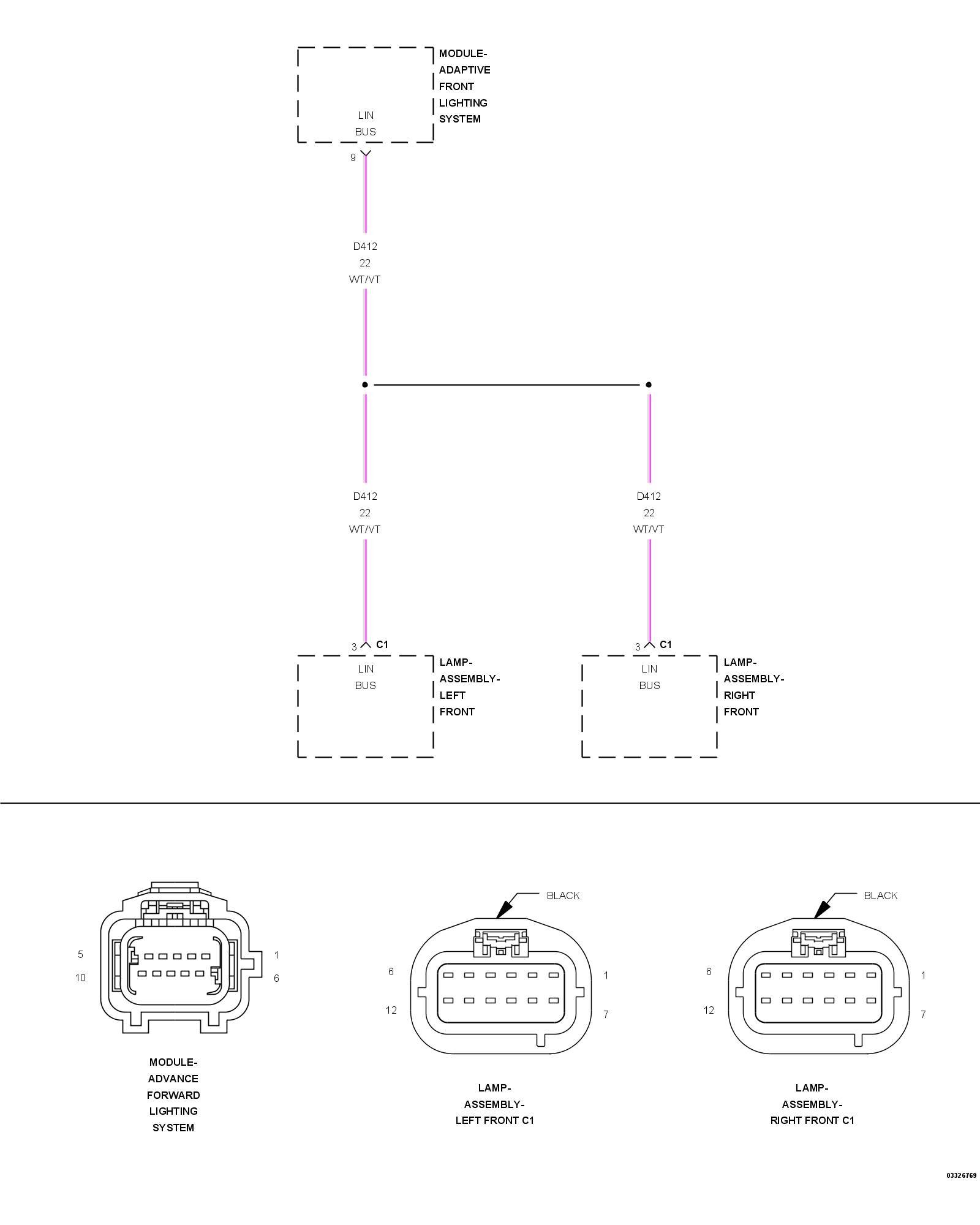

For a complete wiring diagram, refer to the Wiring Information.
- When Monitored:
Continuously with the ignition on.
- Set Condition:
The Adaptive Front Lighting System (AFLS) Module detects a short to voltage, short to ground, or an open on the (D412) LIN BUS circuit.
1. CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.
Does the scan tool display this DTC as active?
Yes
- Go To 2
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
2. (D412) LIN BUS CIRCUIT SHORTED TO VOLTAGE
1. Turn the ignition off.
2. Disconnect the Adaptive Front Lighting System (AFLS) Module harness connector.
3. Disconnect the Left Front Headlamp Assembly C1 harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (D412) LIN Bus circuit.
Is there any voltage present?
Yes
- Repair the (D412) LIN Bus circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
No
- Go To 3
3. (D412) LIN BUS CIRCUIT SHORTED TO GROUND
1. Turn the ignition off.
2. Measure the resistance between ground and the (D412) LIN Bus circuit.
Is the resistance below 10K Ohms?
Yes
- Repair the (D412) LIN Bus circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
No
- Go To 4
4. (D412) LIN BUS CIRCUIT OPEN OR HIGH RESISTANCE
1. Measure the resistance of the (D412) LIN Bus circuit.
Is the resistance above 5.0 Ohms?
Yes
- Repair the (D412) LIN Bus circuit for an open or high resistance.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
No
- Replace the Adaptive Front Lighting System (AFLS) Module. Adaptive Front Lighting System Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
