B1603-11

B1603-11-RIGHT SOLAR SENSOR - CIRCUIT SHORT TO GROUND





For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The HVAC A/C Heater Module uses a variety of sensors to adjust HVAC operation to obtain optimal performance. These sensors are continuously monitored by the A/C Heater Module to assure that they are in range. If those sensors fall out of predetermined ranges a Diagnostic Trouble Code (DTC) will set. For further information Sun Sensor - Operation.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
If the A/C Heater Module detects on Sun Sensor 2 Signal circuit a voltage less than 0.5 volts for the period of two seconds or more. This DTC has a de-maturing time of 20 msec. If the DTCs status changes from active to stored, the DTC will stay in memory for 100 ignition cycles.





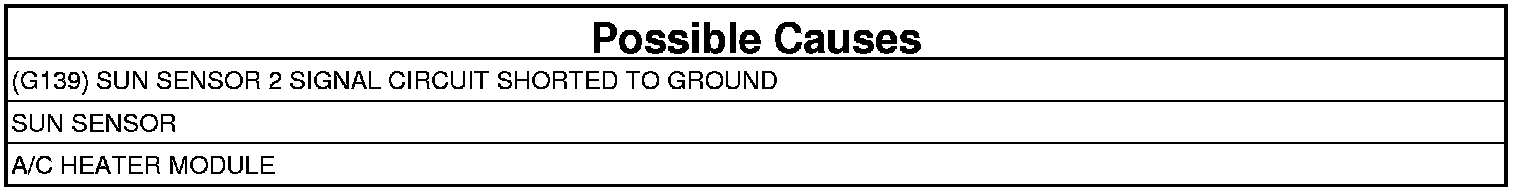

Always perform the HVAC Pre-Diagnostic Troubleshooting procedure before proceeding. Initial Inspection and Diagnostic Overview.

1. CHECK IF THE DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, read HVAC DTCs.

Is this DTC active?

Yes

- Go To 2

No

- Go To 4

2. CHECK (G139) SUN SENSOR 2 SIGNAL CIRCUIT FOR A SHORT TO GROUND




1. Turn the ignition off to the lock position.
2. Disconnect the A/C Heater Module C1 harness connector.
3. Disconnect the Sun Sensor harness connector.
4. Measure the resistance between ground and the (G139) Sun Sensor 2 Signal circuit.

Is the resistance below 100k Ohms?

Yes

- Repair the (G139) Sun Sensor 2 Signal circuit for a short to ground.
- Perform the HVAC VERIFICATION TEST. HVAC Verification Test.

No

- Go To 3

3. CHECK THE SUN SENSOR AND A/C HEATER MODULE
1. Replace the Sun Sensor. Sun Sensor - Removal.
2. Perform the HVAC VERIFICATION TEST. HVAC Verification Test.

Did this DTC reset while performing the HVAC Verification Test?

Yes

- Replace and program the A/C Heater Module. A/C And Heater Control Module - Removal.
- Perform the HVAC VERIFICATION TEST. HVAC Verification Test.

No

- Test complete.

4. CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set the DTC are not present at this time.
2. Using the scan tool, check the Environmental Data to help identify the conditions in which the DTC was set.
3. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
4. Wiggle the wiring and connectors while checking for shorted and open circuits.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the HVAC VERIFICATION TEST. HVAC Verification Test.

No

- Test complete.
