B1571

B1571-00-LOW VOLTAGE DIFFERENTIAL SIGNAL (LVDS) VIDEO CABLE - PASSENGER

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Integrated Center Stack (ICS) detects that the Passenger Low Voltage Differential Signal (LVDS) Video Cable is disconnected for greater than 10 seconds.





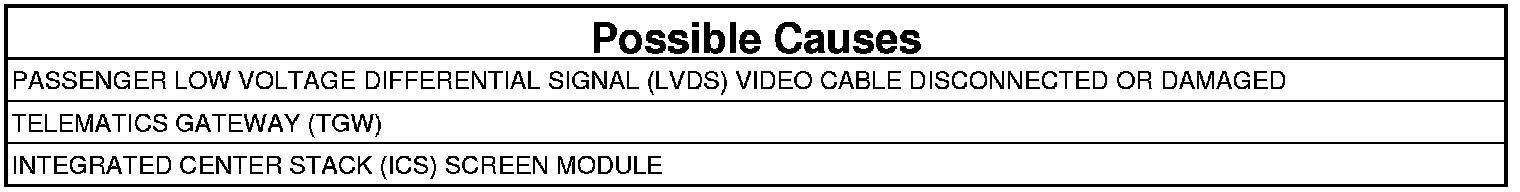

1. CHECK THE PASSENGER VIDEO CABLE CONNECTION AT THE INTEGRATED CENTER STACK (ICS) SCREEN MODULE
1. Turn the ignition off.
2. Inspect the passenger video cable connection at the rear of the Integrated Center Stack (ICS) Screen Module

Is the passenger video cable connection secure and undamaged?

Yes

- Go To 2

No

- Repair the passenger video cable connection as needed.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK THE PASSENGER VIDEO CABLE CONNECTION AT THE TELEMATICS GATEWAY (TGW)
1. Inspect the passenger video cable connection at the rear of the Telematics Gateway (TGW)

Is the passenger video cable connection secure and undamaged?

Yes

- Replace the Passenger Low Voltage Differential Signal (LVDS) Video Cable.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the passenger video cable connection as needed.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
