B156E

B156E-4B-INTEGRATED CENTER STACK (ICS) - OVER TEMPERATURE

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Integrated Center Stack (ICS) Screen Module exceeds its operating temperature limit.

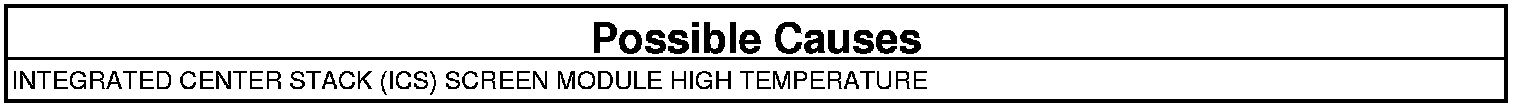

INTEGRATED CENTER STACK (ICS) SCREEN MODULE HIGH TEMPERATURE
1. Turn the ignition on.
2. With the scan tool, clear all ICS DTCs.
3. Turn the ICS on.
4. With the scan tool, read the DTC information.

Does the scan tool read: B156E-4B INTEGRATED CENTER STACK (ICS)- OVER TEMPERATURE as active?

Yes

- Turn the Integrated Center Stack (ICS) Screen Module off and allow the unit to cool.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test Complete.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
