B14B9-13

B14B9-13-CHANNEL 9 AUDIO SPEAKER OUTPUT - CIRCUIT OPEN





For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The (X200) Center Instrument Panel (I/P) Speaker (+) circuit and the (X290) Center Instrument Panel (I/P) Speaker (-) circuit are outputs of the Amplifier. The Amplifier controls and monitors these circuits for a concern.

For a detailed description of the Audio System. Audio And Video - Description.

For additional information regarding the operation of the Audio System. Audio And Video - Operation.

- When Monitored:
Amplifier Bus wake-up. Amplifier reset with scan tool.

- Set Condition:
The Amplifier detects an open condition on the speaker output circuit.





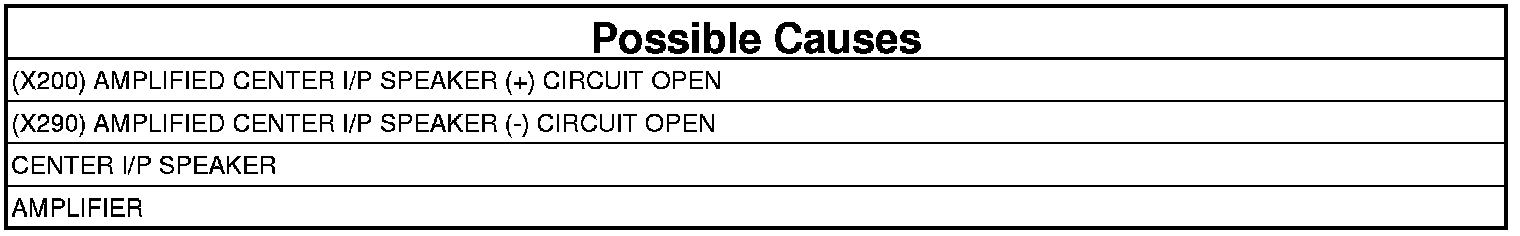

1. CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.

NOTE: A front door must remain open whenever checking or erasing Amplifier DTCs.

2. With the scan tool, record and erase the Amplifier DTCs.
3. Cycle the ignition switch from on to off, wait five seconds and then back to on.
4. Turn the Radio on and set the volume to 25.
5. Adjust the speakers to the front and center.
6. With the scan tool, read the active Amplifier DTCs.

Does the scan tool display active: B14B9-13-CHANNEL 9 AUDIO SPEAKER OUTPUT - CIRCUIT OPEN?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK THE OPERATION OF THE CENTER FRONT I/P SPEAKER




1. Turn the ignition off.
2. Disconnect the Center I/P Speaker harness connector.
3. Turn the ignition on.
4. Turn the radio on and set the volume to 25.
5. Adjust the speakers to the front and center.

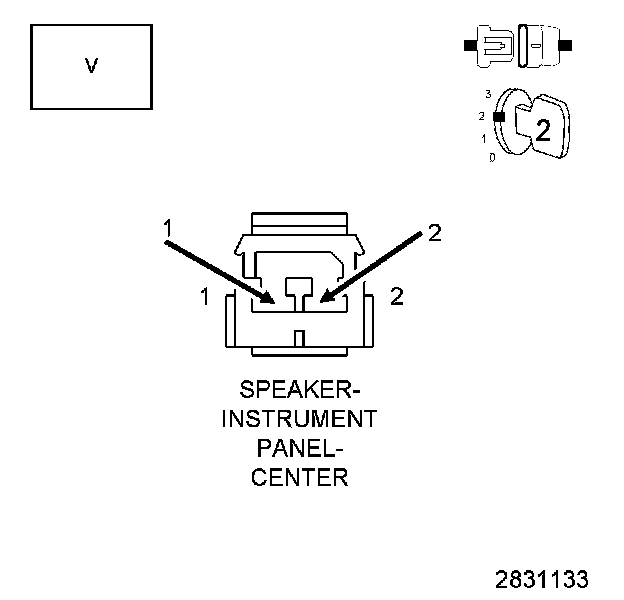

6. With a voltmeter set to read in A/C voltage, measure the voltage of the Amplified Center I/P Speaker circuits in the Amplified Center I/P Speaker harness connector.

Is the voltage present greater than 1 volt?

Yes

- Replace the Amplified Center I/P Speaker. Instrument Panel
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. CHECK THE (X200) CENTER I/P SPEAKER (+) CIRCUIT FOR AN OPEN




1. Turn the ignition off.
2. Disconnect the Amplifier C1 harness connector.

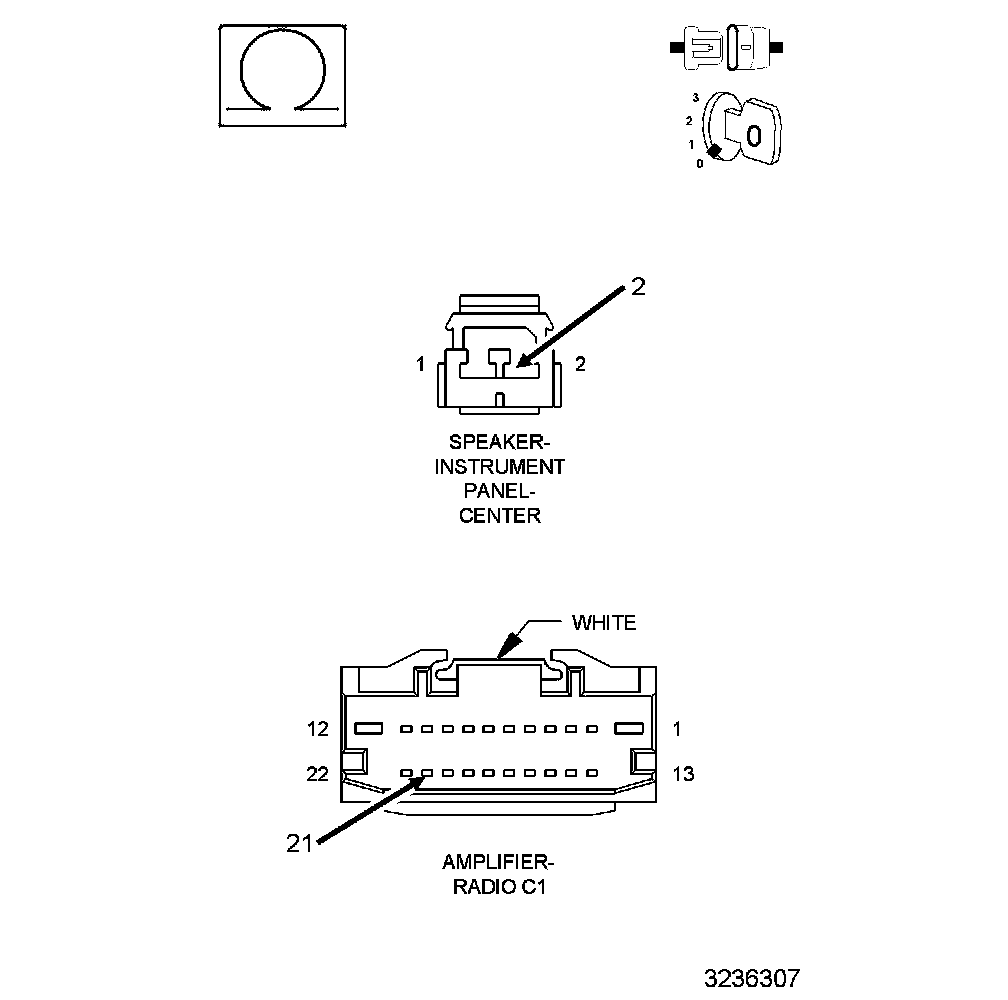

3. Measure the resistance of the (X200) Center I/P Speaker (+) circuit between the Amplifier C1 harness connector and the Center I/P Speaker harness connector.

Is the resistance below 2.0 Ohms?

Yes

- Go To 4

No

- Repair the (X200) Center I/P Speaker (+) circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

4. CHECK THE (X290) CENTER I/P SPEAKER (-) CIRCUIT FOR AN OPEN

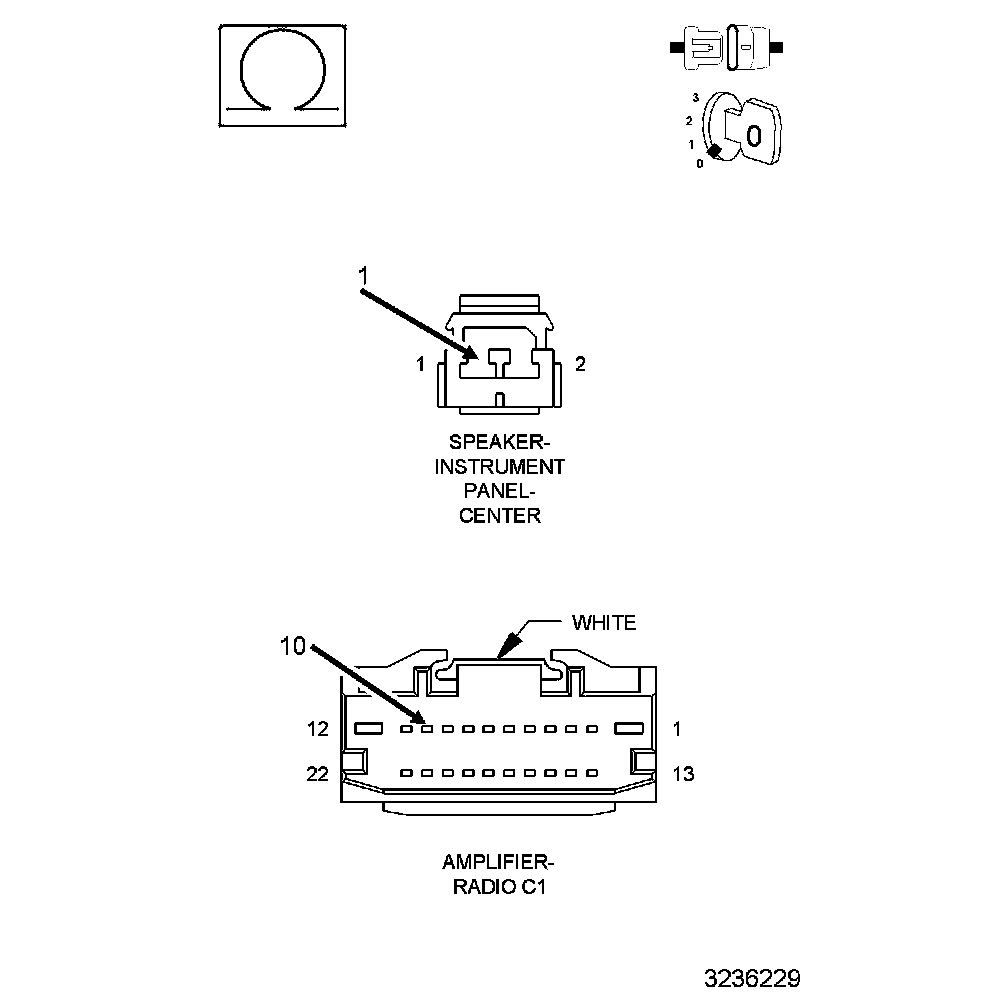

1. Measure the resistance of the (X290) Center I/P Speaker (-) circuit between the Amplifier C1 harness connector and the Center I/P Speaker harness connector.

Is the resistance below 2.0 Ohms?

Yes

- Replace the Amplifier. Amplifier - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the (X290) Center I/P Speaker (-) circuit for an open.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
