B11E7

B11E7-00-HVAC SWITCH BANK DISCONNECTED

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

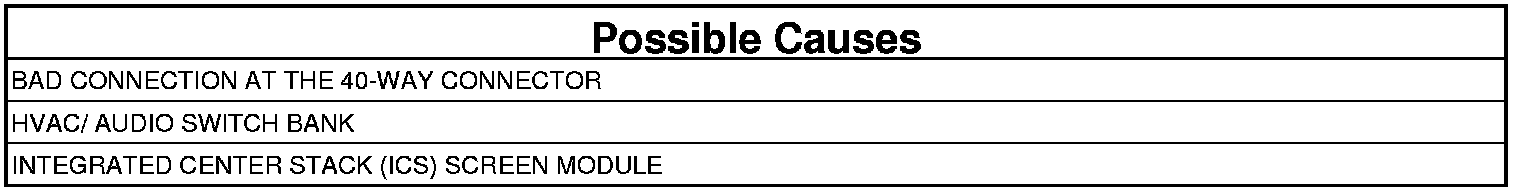

- Set Condition:
The Integrated Center Stack (ICS) detects that the 40-Way connector is disconnected for greater than 10 seconds.





1. CHECK THE 40-WAY CONNECTION AT THE HVAC/ AUDIO SWITCH BANK
1. Turn the ignition off.
2. Inspect the connection at the rear of the HVAC/ Audio Switch Bank

Is the connection clean and secure?

Yes

- Go To 2

No

- Repair the connection as needed.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK THE 40-WAY CONNECTION AT THE INTEGRATED CENTER STACK (ICS)
1. Inspect the connection at the rear of the Integrated Center Stack (ICS)

Is the connection clean and secure?

Yes

- Replace the 40-Way jumper harness between the Integrated Center Stack (ICS) and HVAC/ Audio Switch Bank.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair the connection as needed.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
